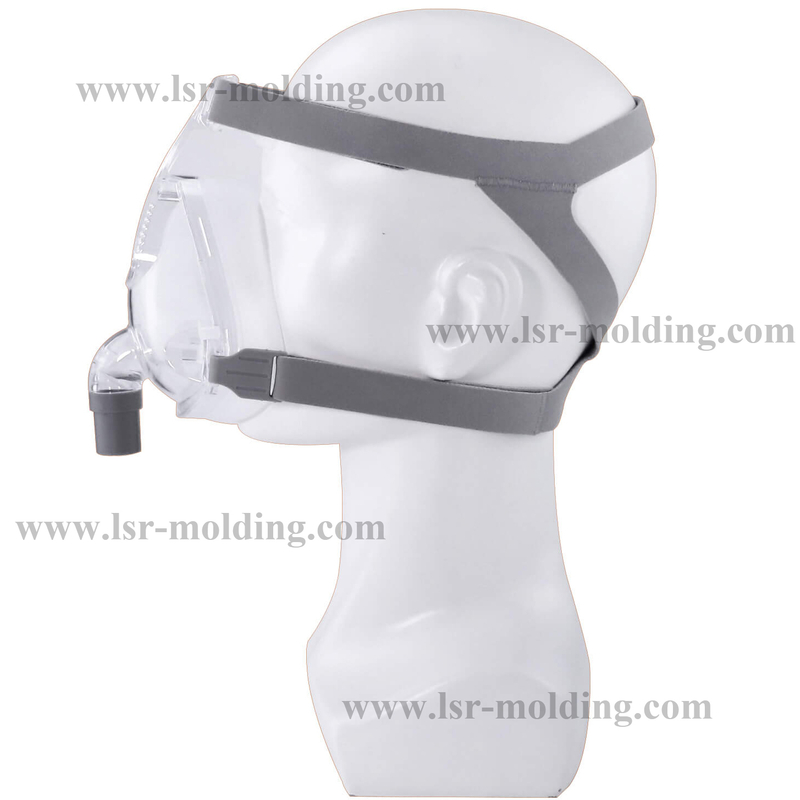

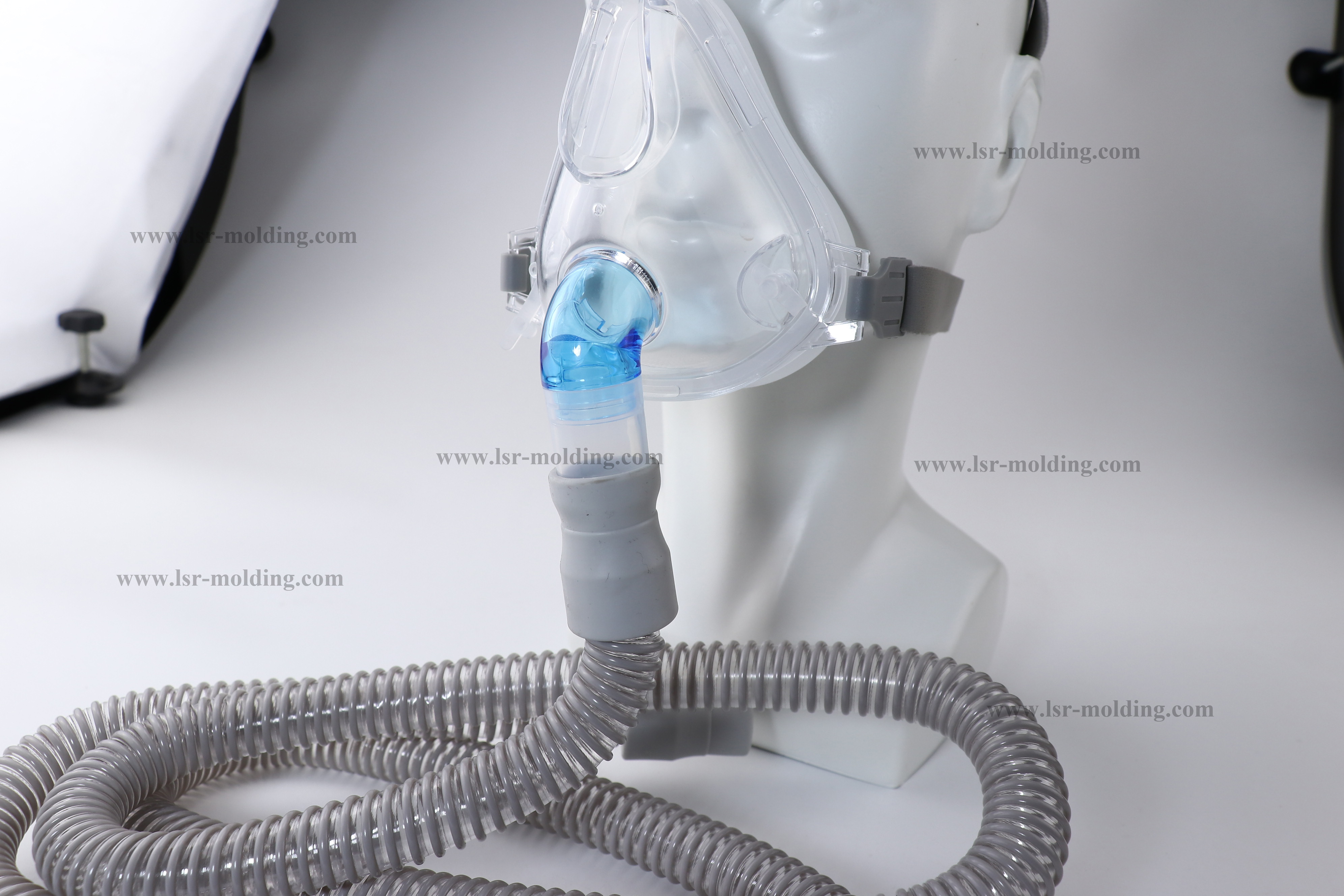

CPAP Full Face Mask

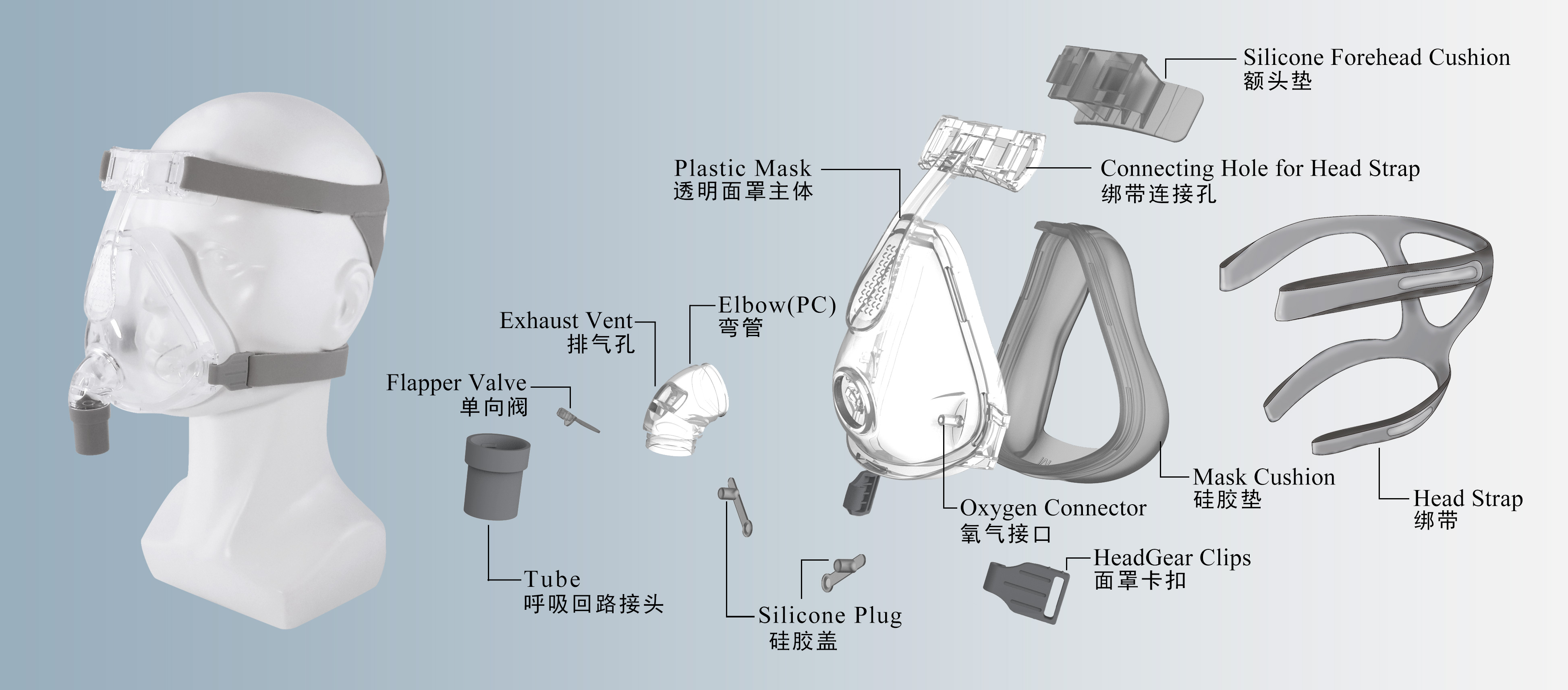

CPAP Mask also known as Sleep Apnea Mask, Positive Pressure Mask,Nasal Mask and Full Face Mask.  The CPAP mask (Continuous Positive Airway Pressure mask) is a medical device used to treat patients with Sleep Apnea and other sleep disorders.CPAP therapy prevents snoring and apnea events by applying continuous positive pressure to the patient's airway to keep it open. A CPAP mask typically consists of the following major components:

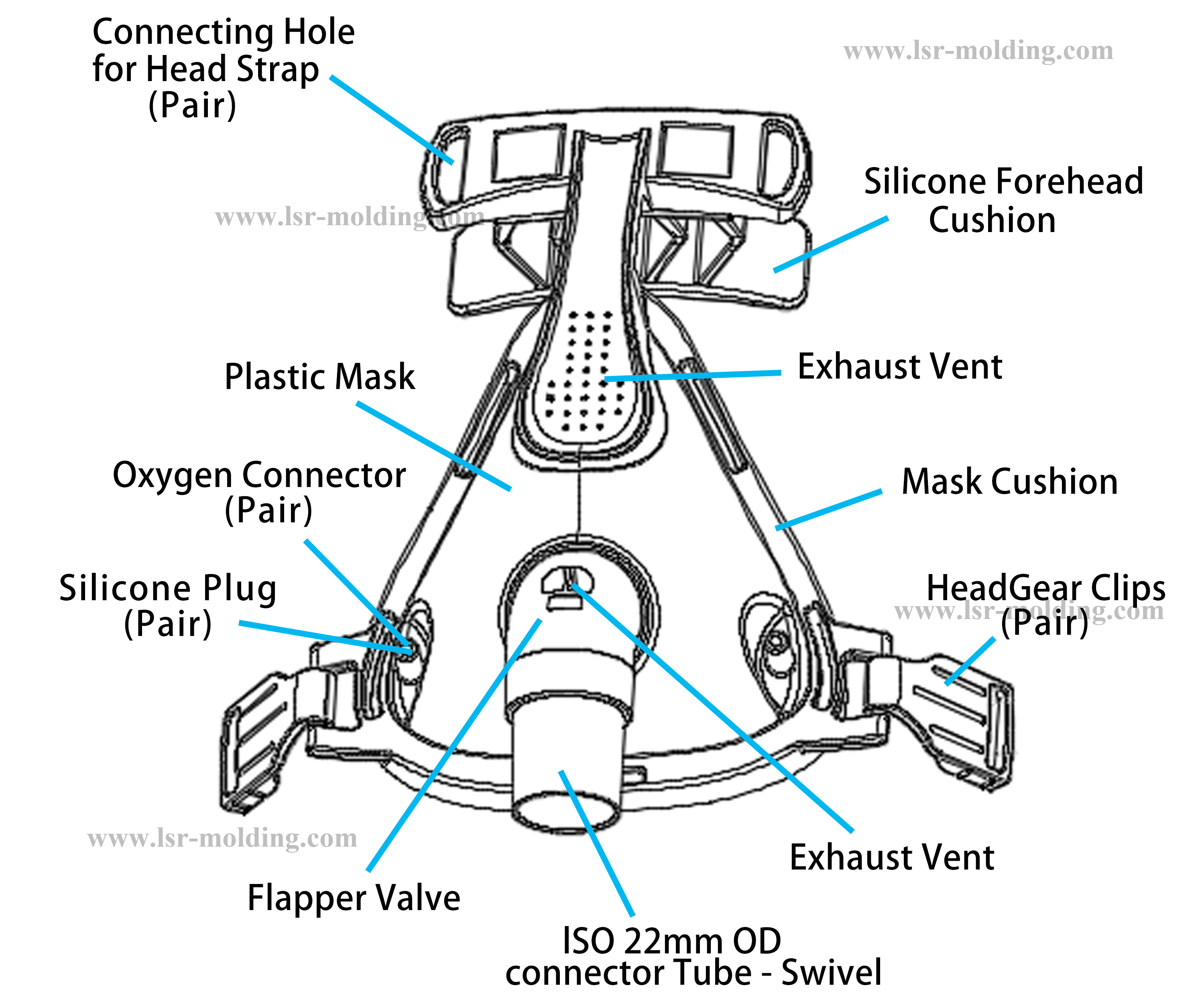

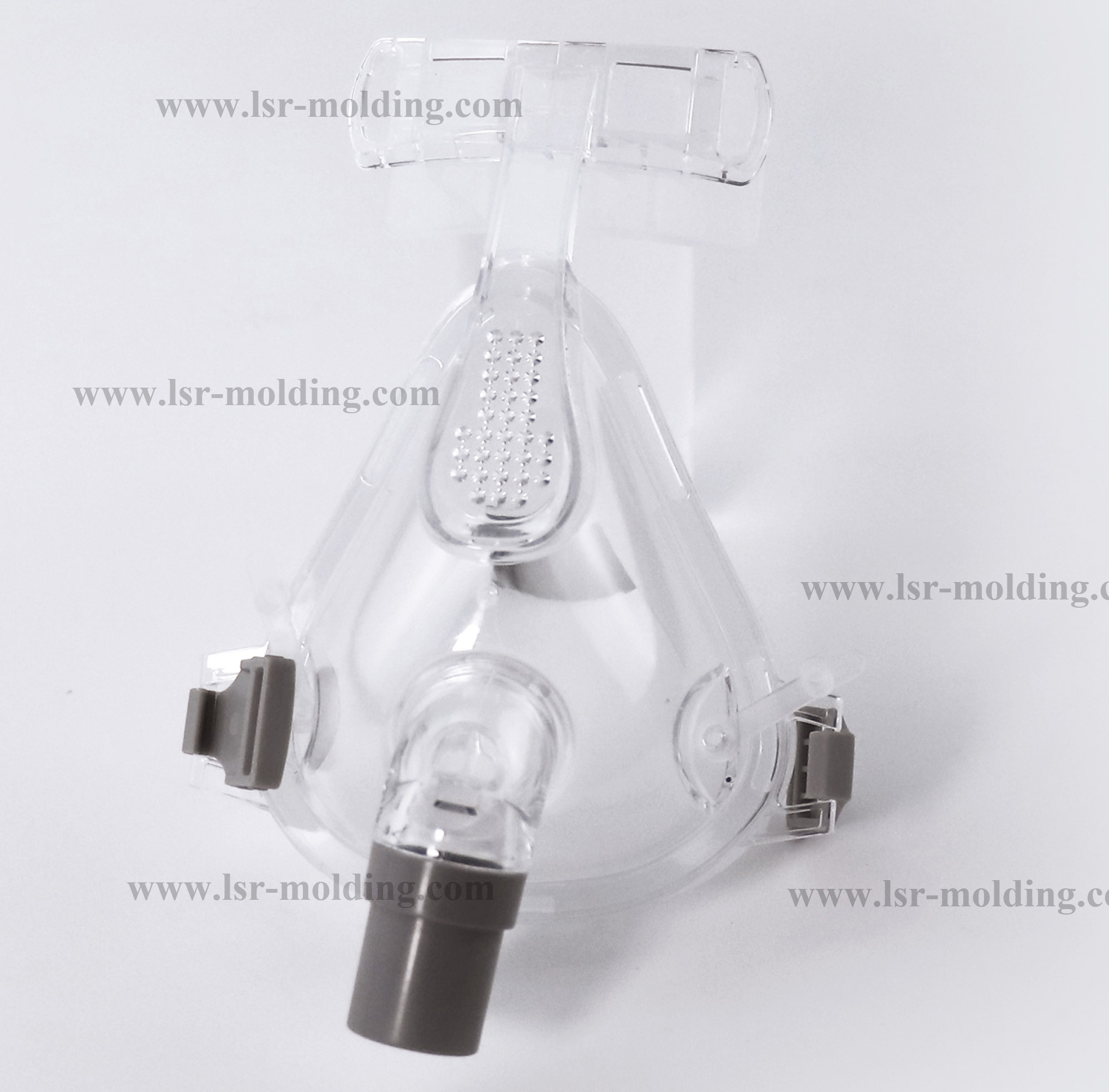

Mask Body

The mask body is the core part of the CPAP mask, it is in direct contact with the patient's face and is responsible for providing a comfortable fit and an effective seal. The main structures of the mask body are frame and pad.

The mask body usually has a transparent plastic frame that provides structural support for the mask, meanwhile, it's easy to observe the situation inside the mask. The frame can be rigid or semi-rigid, depending on the design needs towards Respiratory Services Full Face Mask.

Located inside the frame, it is a soft pad that is used for direct contact with the patient's skin.

The soft pad is usually made of silicone or foam and is designed to provide a comfortable fit and reduce pressure points. They form a cup that conforms to the shape of the patient's face. The mask body needs to be comfortable enough for the patient to wear Sleep Apnea Disorder Breathing Relief  Mask during sleep.

Head Strap

The head strap is used to secure the mask to the patient's head in full face CPAP mask.The head strap needs to be comfortable enough and adjustable enough to accommodate patients with different face shapes and sizes of head when they use the Respiratory Services Full Face Mask  .

Headbands are usually made of nylon (Nylon) and fabric. Nylon is a strong and durable synthetic fibre that is sometimes used in the manufacture of certain parts of the CPAP mask, such as interfaces or headbands. Some CPAP masks may contain fabric for the headband, usually a soft, breathable material such as cotton or polyester.

Connector

The CPAP mask is connected to the CPAP device through a connector that transmits a continuous positive airflow. The connectors section is one of the key components of the CPAP mask and is responsible for connecting the mask body to the CPAP device or other gas supply source. Connectors are usually constructed with threaded connections and Duckbill Valves in the CPAP pillows .

The most common type of connector is the threaded connection, which consists of a port with a female thread and a plug with a male thread. This type of connection provides a gas-tight connection with good performance and ensures that no gas can escape. Some connections may be equipped with a duckbill valve, which allows gas to flow from the CPAP device to the mask while preventing gas from flowing back.

Tube

CPAP masks are usually equipped with a connecting tube (also known as a line or catheter) that is used to connect the body of the mask to the CPAP device or other source of gas supply. This tube is an integral part of the CPAP system and ensures a steady flow of gas from the CPAP device to the mask, thus providing continuous respiratory support to the patient.

The connecting tubing is usually made of a soft plastic or silicone material to allow for easy bending and conforming to the shape of the patient's head and body. The softness also helps to reduce pressure and discomfort on the patient's skin. The length of the connecting tube should be designed to suit the patient's height and comfort needs. Standard length connecting tubes are usually between 1 and 1.5 metres, but can be customized to meet specific needs.

The diameter of the connecting tube affects the resistance to airflow. Thicker tubing reduces resistance to airflow and allows for smoother breathing, but it also increases dead space, the amount of gas that is not inhaled by the patient.

Application Scenarios

CPAP mask is primarily used to treat sleep apnoea and other sleep disorders by applying continuous positive pressure to the patient's airway to keep it open. Application scenarios include:

Treatment of sleep apnoea: to help patients reduce snoring and apnoea events.

Assisted breathing: to provide respiratory support in conditions such as COPD, pulmonary fibrosis, and heart disease.

Long Term Care: Helps patients maintain breathing in long term care facilities.

First Aid and Disaster: Provides respiratory assistance in emergency situations as a temporary life support device.

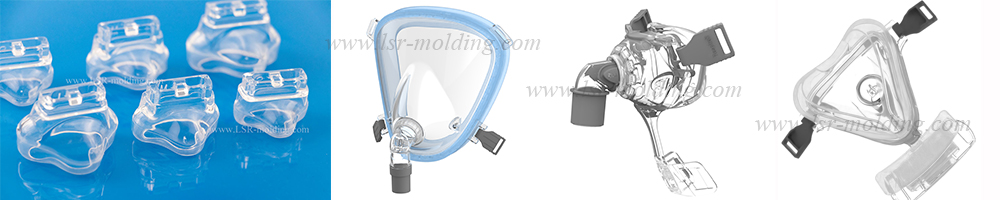

Other Similar Products

In addition to CPAP masks, our factory can also customise the following products：

Nasal mask

Total face mask

APAP Mask

VPAP Mask
