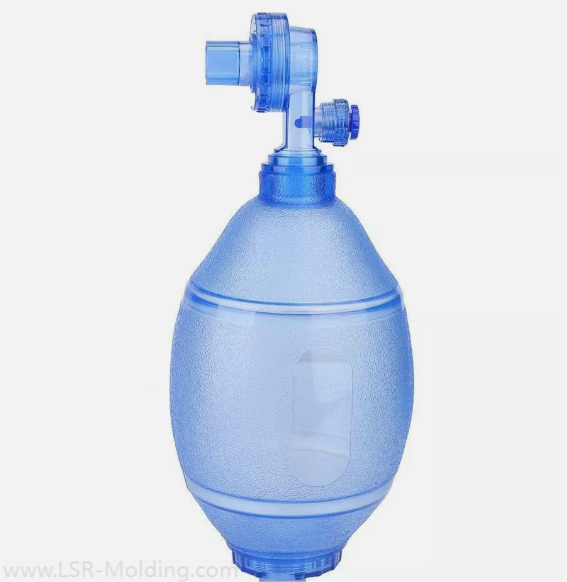

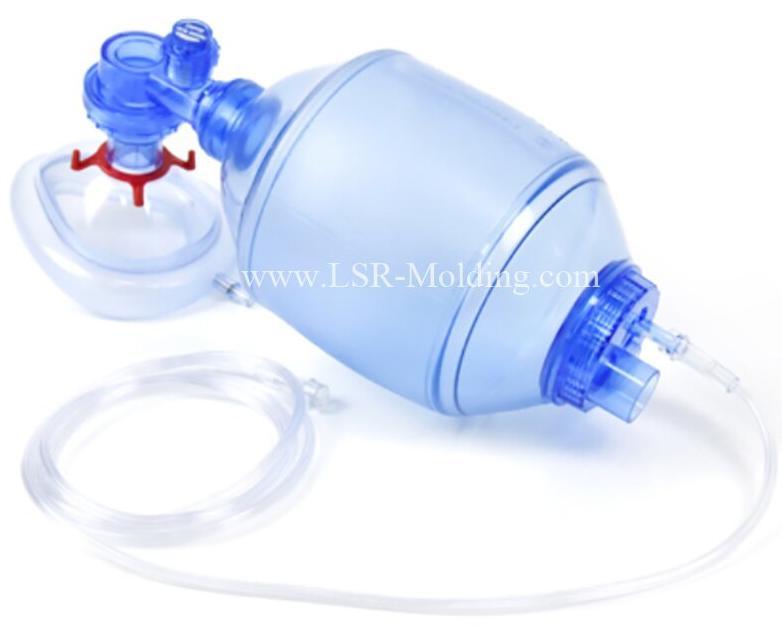

Manual Resuscitator Bag

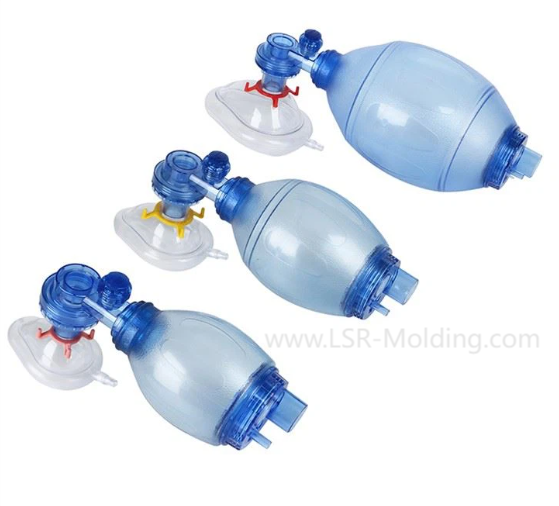

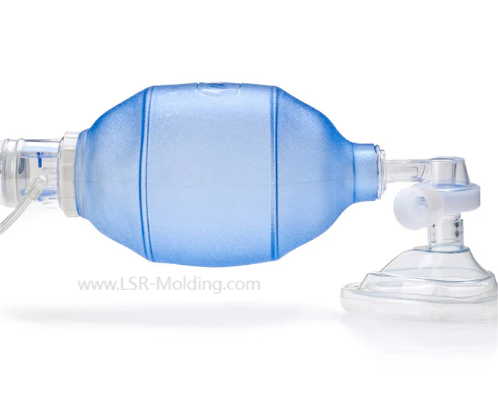

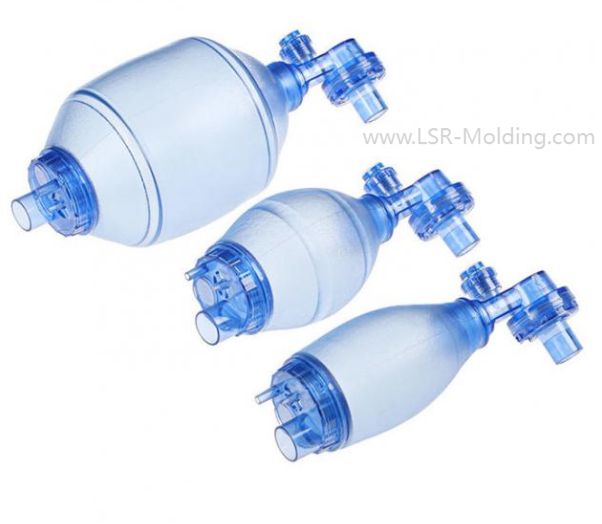

Manual Resuscitator Bag, also known as ambu bag, self inflating bag, resuscitator bag, ventilation & respiratory bag and resuscitation balloon, is a handheld medical device used to deliver breaths of oxygen in bvm ventilation. Manual resuscitation bag which has disposable and reusable type, is made from PVC, silicone or liquid silicone rubber. It is a part of manual resuscitator, ambu bag ventilator, bag valve mask, CPR bag in medical use. We are manufacturer of self-inflating resuscitator, ambu bag parts, and bag valve masks in different sizes for pediatric infant adult.
BVM Resuscitator Key Components and Functions
1. Reservoir Bag
- Material: Medical-grade PVC ( Latex Free ) with good elasticity and aging resistance.

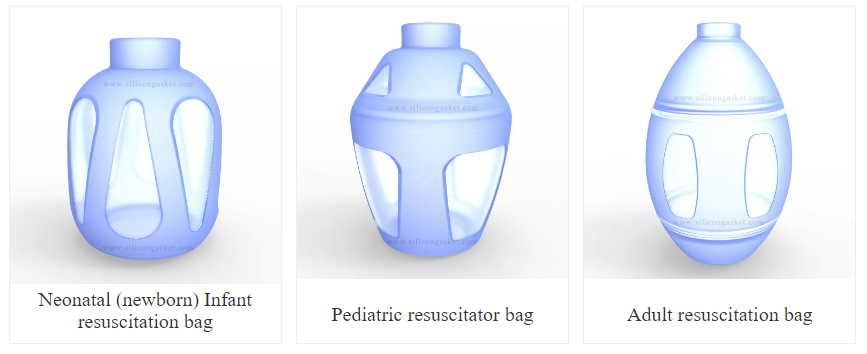

- Volume:
Adult: ~1600 mL
Pediatric: ~500 mL
Neonatal: ~240 mL
- Features:
Manual compression delivers airflow, though rebound is slower than silicone.

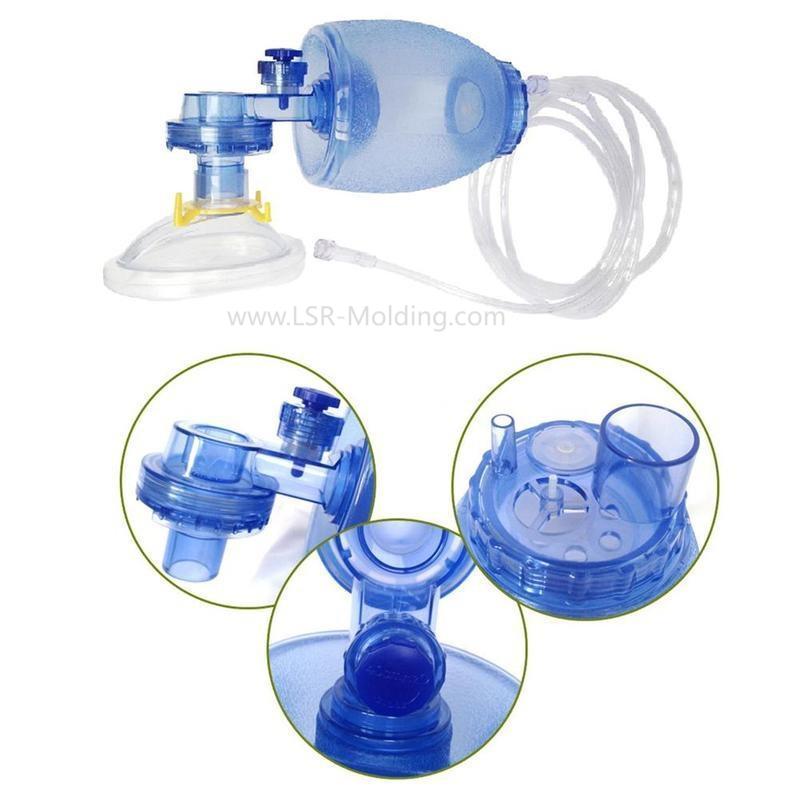

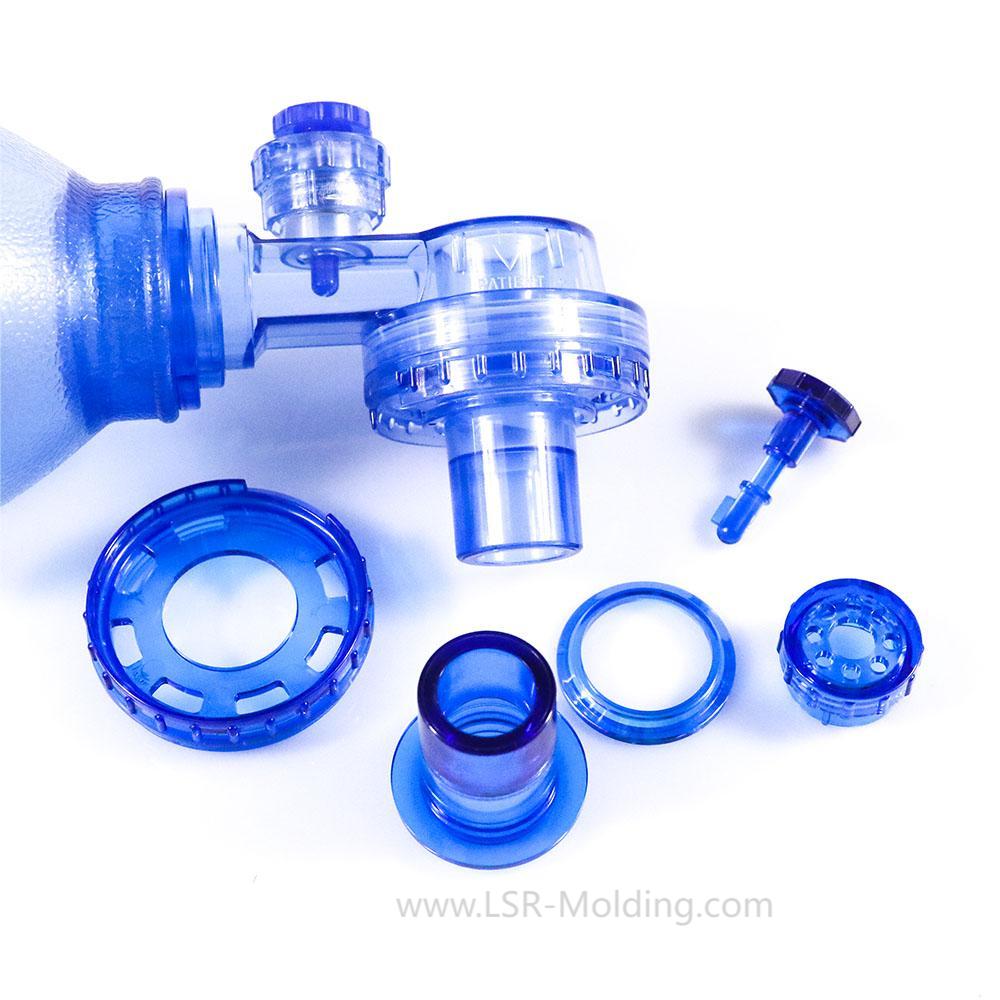

2. One-Way Valve System
Function: Allows ambient air or oxygen to enter the bag while preventing gas leakage during compression.
Location: Typically at the air intake port (connected to the oxygen inlet).
Function:
Opens during exhalation to release CO₂ and prevent rebreathing.
Directs gas to the patient’s airway during compression.
Location: At the patient connection (mask or endotracheal tube).
Types:
Passive Exhalation Valve: Opens based on pressure differences (common in standard BVMs).
PEEP Valve (Positive End-Expiratory Pressure Valve): Maintains airway pressure to prevent alveolar collapse (used in ARDS or hypoxemic patients).
Function: Automatically opens if pressure exceeds a safe threshold (typically 40-60 cmH₂O) to prevent barotrauma (lung injury).
Function: When connected to oxygen, it stores gas in the reservoir bag to increase FiO₂ (up to 90%+).
Location: Connected between the oxygen inlet and reservoir bag.
3. Full Face Mask
- Material: PVC & Silicone mask cushion.
- Design: Transparent or semi-transparent for monitoring oral/nasal secretions.
4. Oxygen Inlet
Compatible with oxygen sources (recommended flow: 10–15 L/min) to increase FiO₂.
PVC BVM Resuscitator VS silicone BVM Resuscitator
The PVC Ambu Bag is made from PVC (polyvinyl chloride), a common plastic material known for its low cost, durability, and ease of manufacturing. The surface is smooth, and the bag is lightweight. Silicone Ambu Bag (Silicone Resuscitator) is made from medical-grade silicone, which offers excellent flexibility, biocompatibility, and high-temperature resistance (can withstand autoclaving). It is usually opaque or semi-transparent and has a softer texture. The material is highly resistant to aging, meaning it does not easily yellow or harden over time.
Manual Resuscitator Bag Manufacturer
Xiamen Better Silicone Company is specialized in customizing and producing medical products like self-inflating resuscitator, ambu bag parts ( including bvm intake valve, pop-off valve, pressure relief valve, patient valve, non-rebreathing valve, PEEP valve, umbrella valve, duckbill one way valve ), face mask, and bag valve masks in different sizes for infants, children, and adults based on customer's 2D&3D drawing or samples. Our company is also specialized in making rubber compression molding & liquid silicone rubber injection mold and producing different types of face masks.

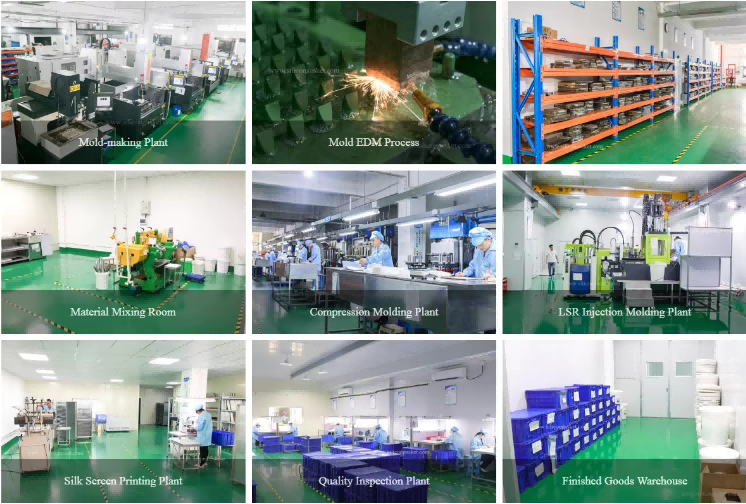

1. Precision Own Mold-Making Technology since 1998,one stop service for silicone rubber compression molded components, plastic injection molded and liquid silicone rubber molding components.
2. In-depth knowledge of elastomeric materials molded
3.In-depth knowledge of fluid control technology.
4. Mature Experience of avoiding out of shape and damage from Production to Shipment: Materials Choice, Design Improvement and Packing Information.
5. Rapid prototyping with full sizes production equipment and production materials.
6.Experienced clean room and precision manufacturing technology.
