Liquid Silicone Rubber Injection Molding

Liquid Silicone Rubber Injection Molding, also called Liquid Injection Molding(LIM), LSR Molding, Liquid Silicone Molding and Silicone injection molding, which is an injection machine to produce pliable, durable and high precision LSR medical accessories, food grade Liquid silicone products and electronic equipment.
Availability:
Quantity:
  • BT-001
  • Better

Liquid Silicone Rubber Injection Molding


Liquid Silicone Rubber Injection Molding, also called Liquid  Injection Molding(LIM), LSR Molding, Liquid Silicone Molding and Silicone injection molding, which is an injection machine to produce pliable, durable and high precision LSR medical accessories, food grade Liquid silicone products and electronic equipment.


Liquid Injection Molding machine main parts:

1. LSR dosage system, which includes two raw material tubes

2. Control system(Static Mixer)

3. Heating Channel and Cooling Channel

Injection molding process:

The raw materials go through A and B tubes into the machines and the control system will mix the raw materials and the mixed materials will flow into heating and cooling channels separately. There is a heating insulation board to insulate the heat.

Liquid silicone rubber injection molding

LSR Injection Molding two forming ways: Vertical and Horizontal.

Horizontal LSR moulding machine: with horizontal code mold, easy to achieve automatic production.Horizontal direct pressure clamping ensures the clamping force be steady and equally distribution.

Vertical Liquid Silicone Rubber Injection molding machine: with vertical mold, standing frame mold, requires manual pick and place products, such as Insert molding. Vertical clamping, vertical injection. Space-saving compact design makes the product take-out more convenient.

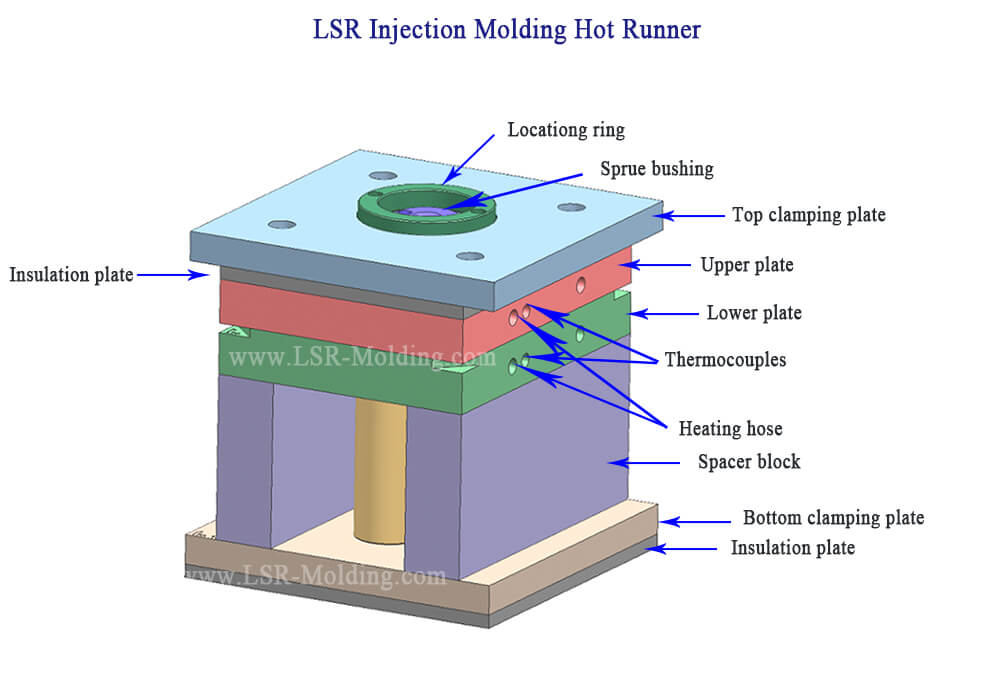

LSR Injection Molding Hot Runner

Liquid Silicone Rubber Injection Molding Advantages:

Batches stability

Process repeatability

No waste

Short cycle time

Less burrs

Highly efficiency

Body implanted available

High tear resistance

Needle Valves for LSR Injection Molding

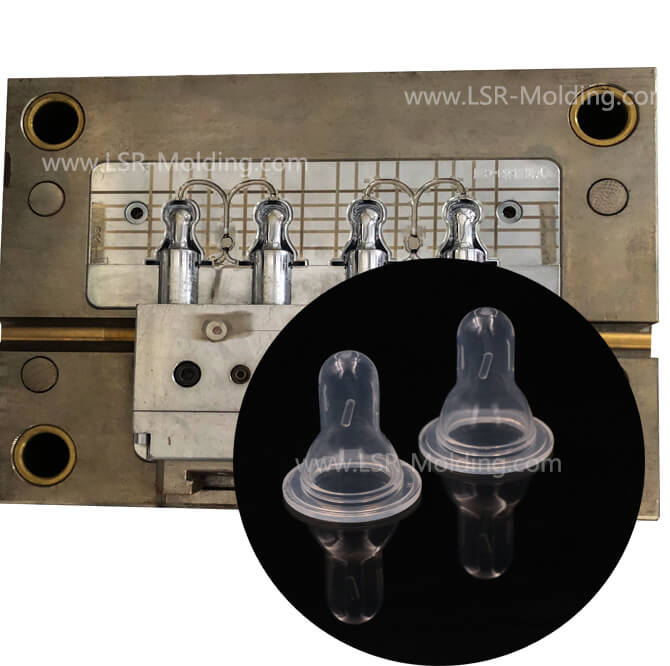

LSR Injection Molded Products:Silicone Nipple Liquid Silicone Rubber Molding

Medical grade liquid silicone rubber:

Liquid Silicone Rubber implants

Liquid Silicone Rubber breast implants

LSR Injection pipe and injection tube

Liquid injection molded valve

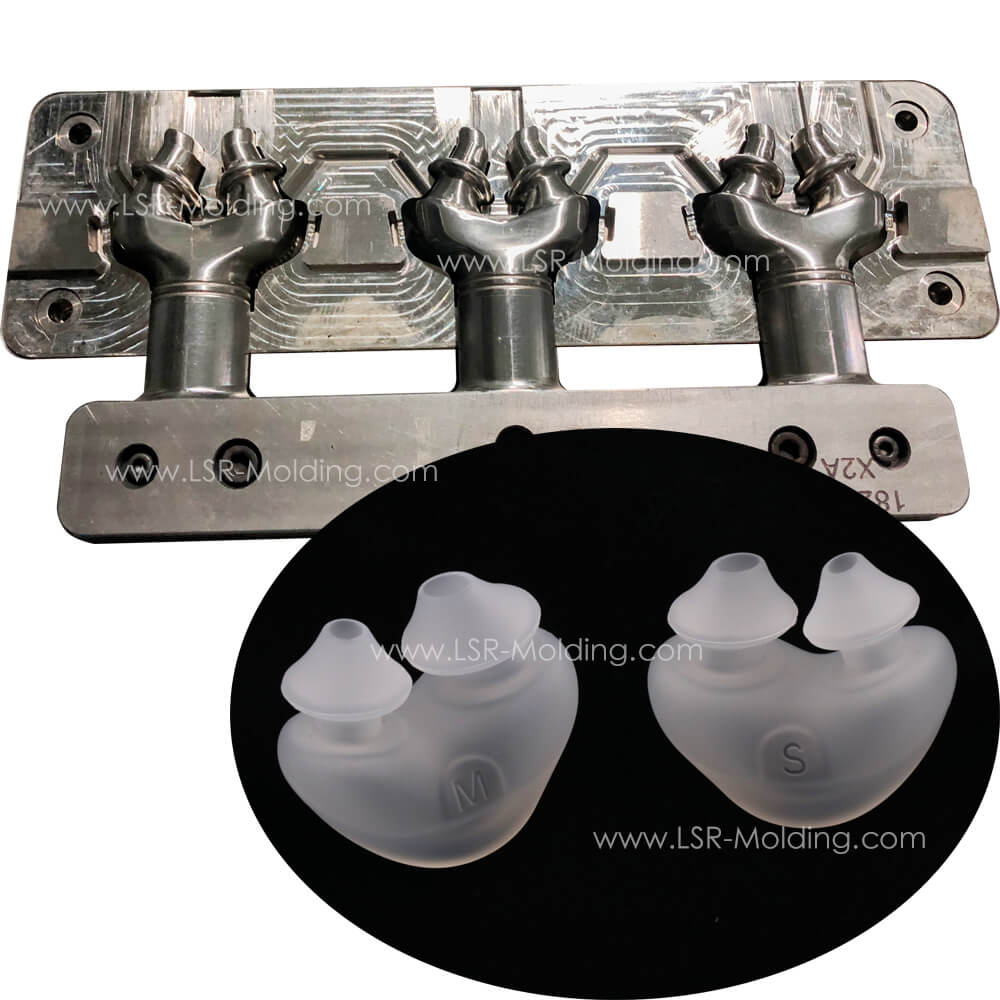

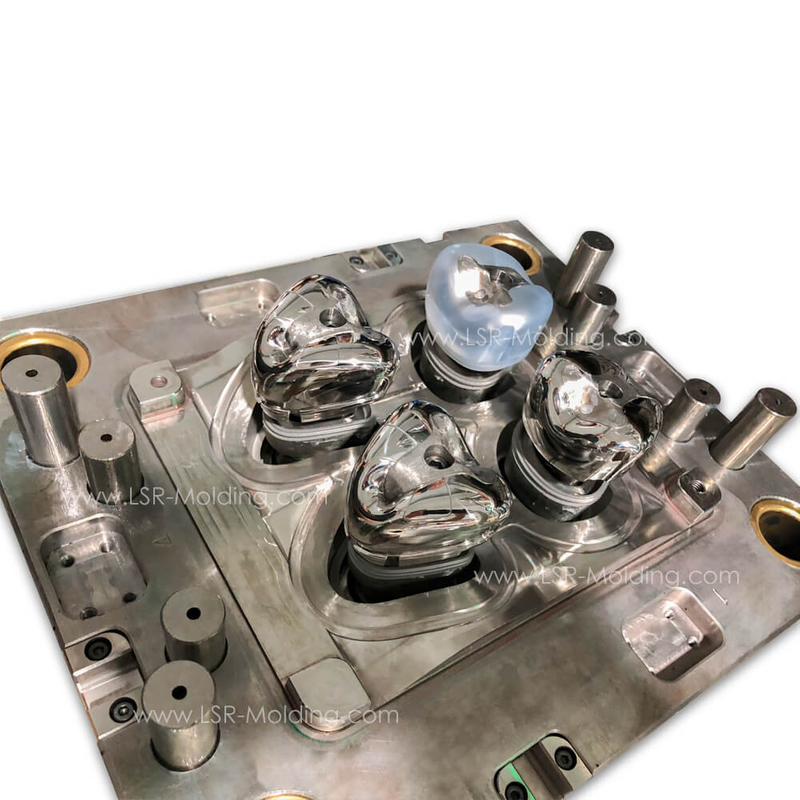

Liquid Silicone rubber mask and silicone oxygen mask


Food grade liquid silicone rubber:

Liquid silicone nipple

Liquid silicone bottle

Silicone pacifiers


Industrial liquid silicone rubber:

Liquid silicone rubber watch band

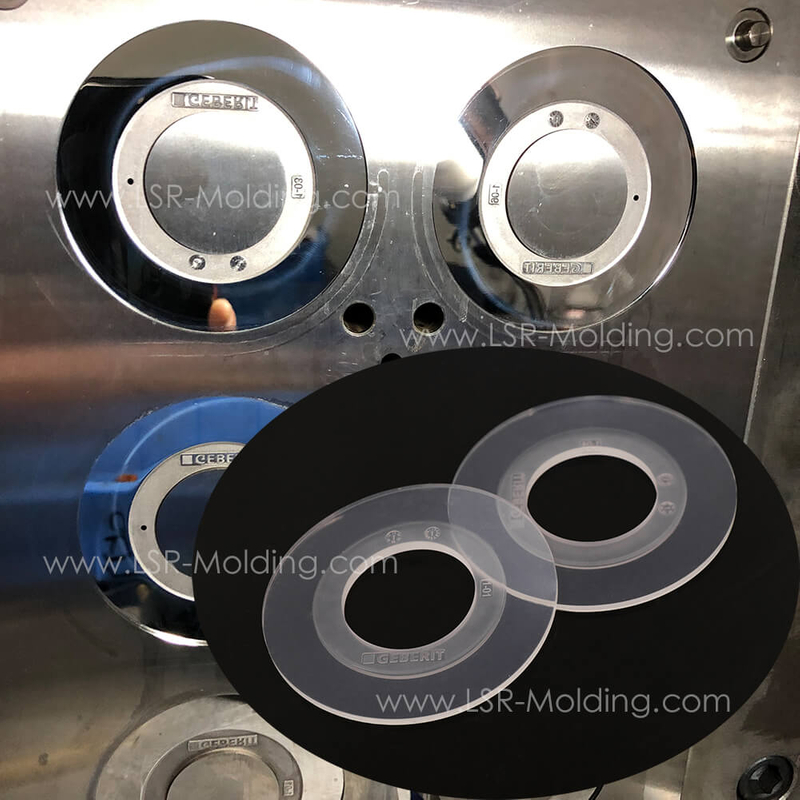

Liquid silicone gasket

Liquid silicone rubber earplugs

Aerospace products

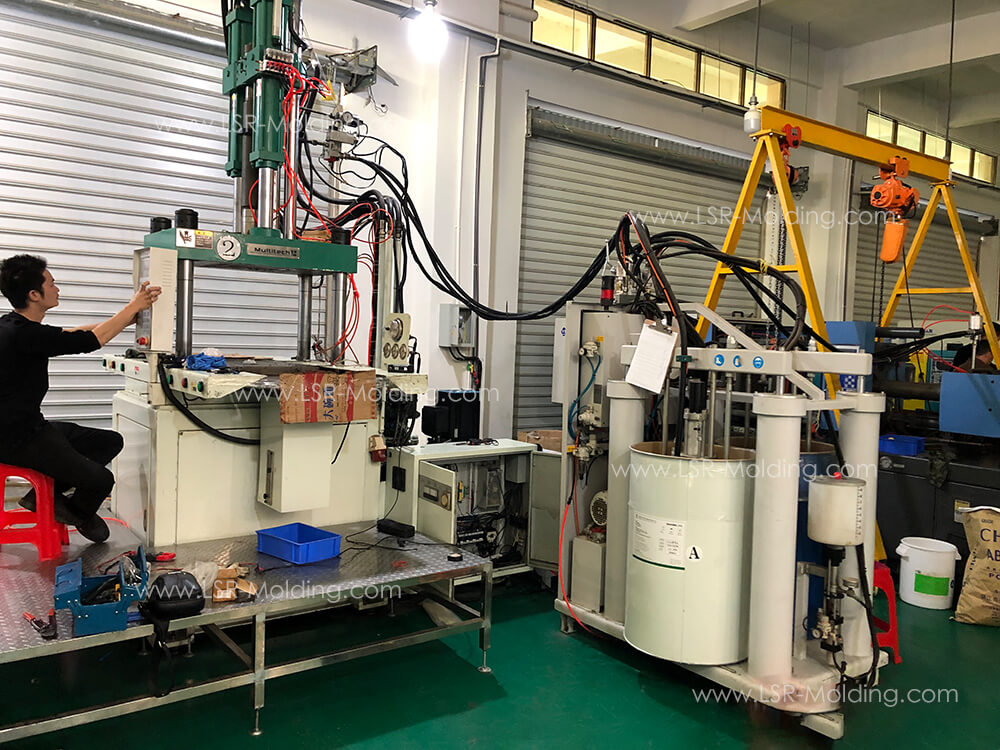

LSR Mold
