Suction tooling is the mould for manufacturing vacuum end effector silicone rubber suction cups by compression molding on rubber compression machine, widely used in vacuum gripping system to move objects, such as glass, window, car dent, tiles, food, lens, phone holder, mounting suction cups, also being seen in medical & healthcare industry, such as surgery, massage, therapy, facial cupping, lymphatic drainage, back pain, scraping, Chinese cupping, etc. Suction is made of silicone, rubber (EPDM/NBR/FKM/NR), or PVC plastic, how to design suction tooling mould for silicone rubber suckers?
| Quantity: | |
|---|---|
Suction tooling also called sucker mold, suction cup tooling, with different mold tooling plates & structures to manufacture silicone rubber sucker by compression machine molding, is an economical development molding way to make samples or production for vacuum cup from bellow suction cup, suction pads, flat vacuum suction cups, oval suction cup, rubber foot suction, to screw suction cup (over-mold metal to rubber vacuum cup). Suction cup tooling is divided into three types: two plates (top mold plate and bottom plate) with mold core/keel, three plates, and three plates with handload/slider, according to the structure, parting line, and dimensions of rubber suction cup. No matter rubber suction cup is used in transmission/gripping/lifting/handling, holder, or health therapy, the material of sucker should be elastic, tear resistant, and good strength properties.

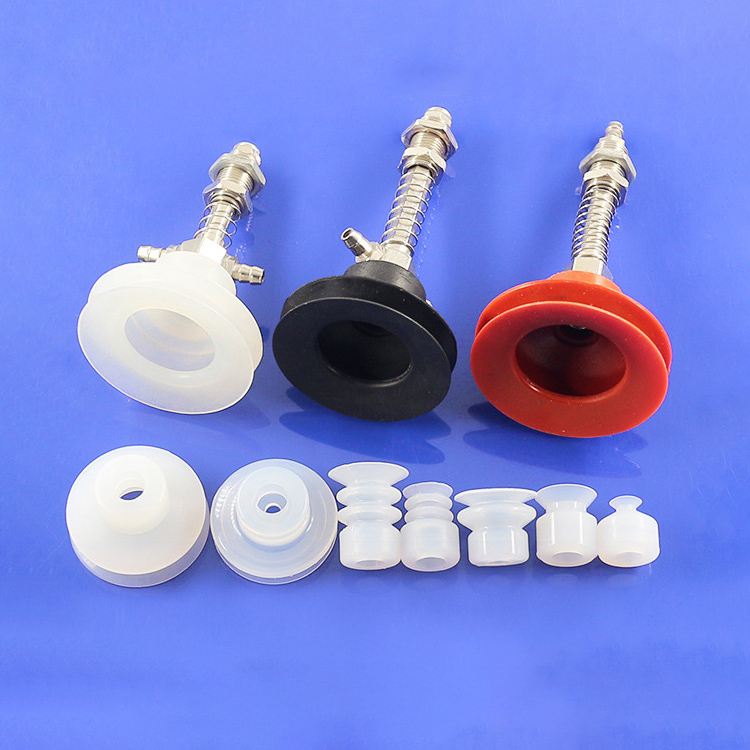

Bellow Suction Cup Compression Mould Tooling:
Rubber vacuum cup is made from flexible silicon rubber that is impenetrable by air. The sucker has a concave area under the nose or head of the cup, the size and shape of the suction cup, the surface finish and surface flat affect the ability of suction cup to stay fixed on a surface such as glass, wall, etc. Rubber sucker we made with very small burrs to help keep suction cup seal and grasp tightly.
Rubber Sucker Compression Tooling - Two Plates With Keel
The tooling with top mold pate, bottom plate, and the horizontal bar / keel, the parting line of sucker is on side.
Advantage: this suction tooling structure is good at manufacturing the long pipe shaped or complicated suction cup with undercut, or the rubber suction cup with holes inside suction pad.
Disadvantage: when wall of rubber sucker is too thick, the side parting line is easy to break that is called parting line crack.
Rubber Suction Cup Compression Mould Tooling - Three Plates
Top tooling plate, middle plate, and bottom plate.
Advantage: this tooling structure is good at flat suction cup when the sucker neck is not too long, the parting line is on the surface of top and bottom of the sucker, good appearance, no burrs and parting line on surface of suction cup body.
Rubber Vacuum Cup Compression Mould - Three Plates With Slider
Rubber Suction Cup Lifter tooling with big undercut or bellow suction cup will use this mould structure, pull the frame keel of the middle plate slide out, will need slide track on middle plate frame.

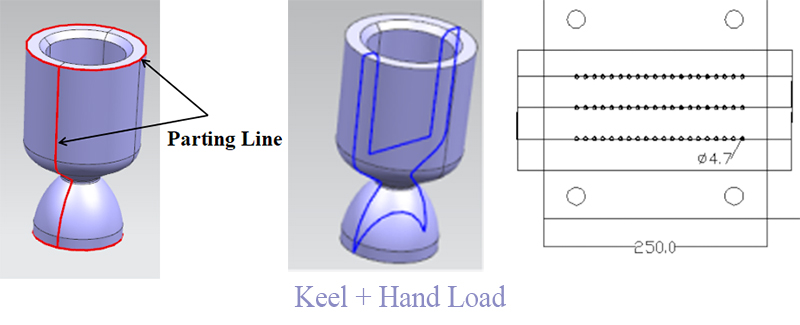

Rubber Sucker Cup Compression Tooling Three Plates With Hand Load
Suction compression tooling with hand load is similar to tooling with slide but not totally same, hand load is removing blocker/frame directly from the keel, the tooling without sliding track.
Compression Molded Rubber Suction Cup Application:

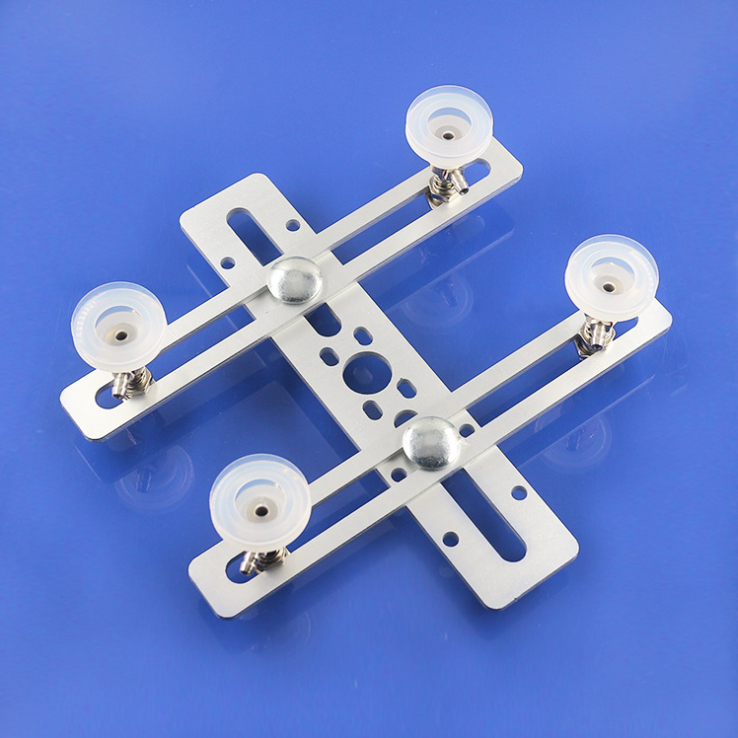

Widely used in the suction end of various vacuum equipment or the adsorption of negative pressure vacuum in the construction, paper industry, printing, glass and other industries.
Rubber suckers are commonly seen in many areas, vacuum gripping system for packaging, food transforming, labeling, for example, rubber suction cup lifter for glass, floor, tile, car shell; pneumatic dent puller suction cups, silicone rubber bellows vacuum suction cup for grasping and handling products, aquarium pump air water hose rubber tube silicone suction cups, silicone rubber sucker pad for mobile phone fixed, decorative picture hangers bathroom/kitchen heavy duty large suction cup hooks snap lever vacuum holder. But also useful for medical healthcare, such as silicone cupping therapy vacuum suction cups for pain relief, massage suction medical cups body cupping Chinese vacuum beauty instrument, etc.

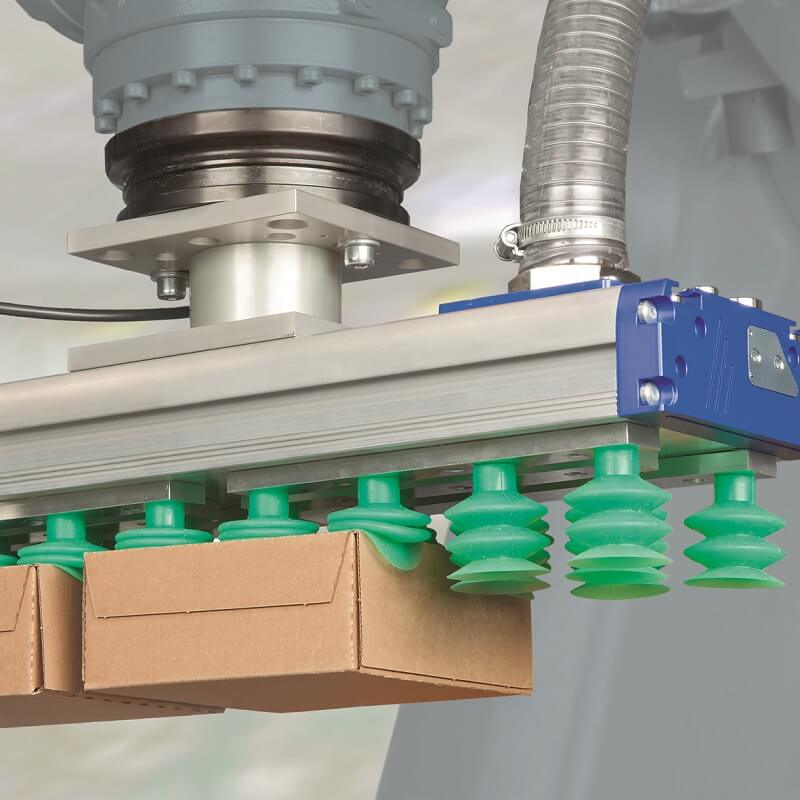

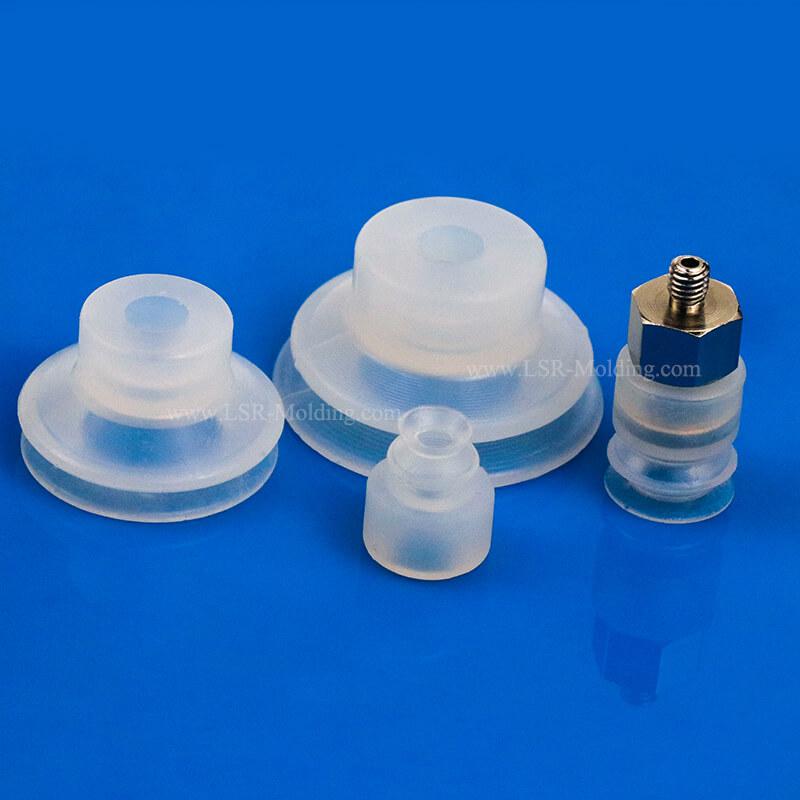

Heavy Duty Vacuum Suction Cup For Paper Industry

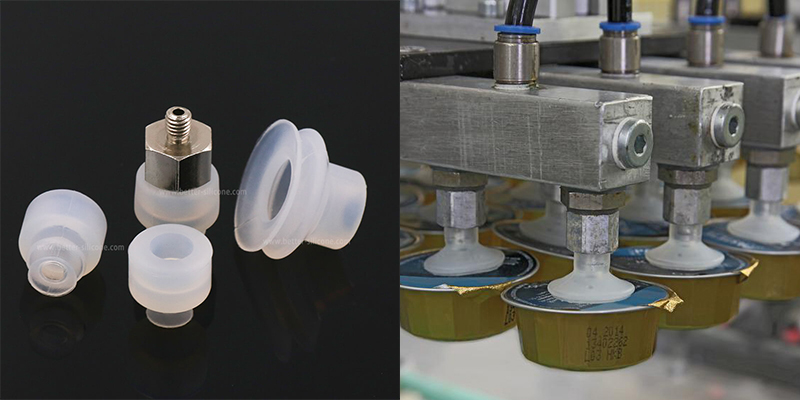

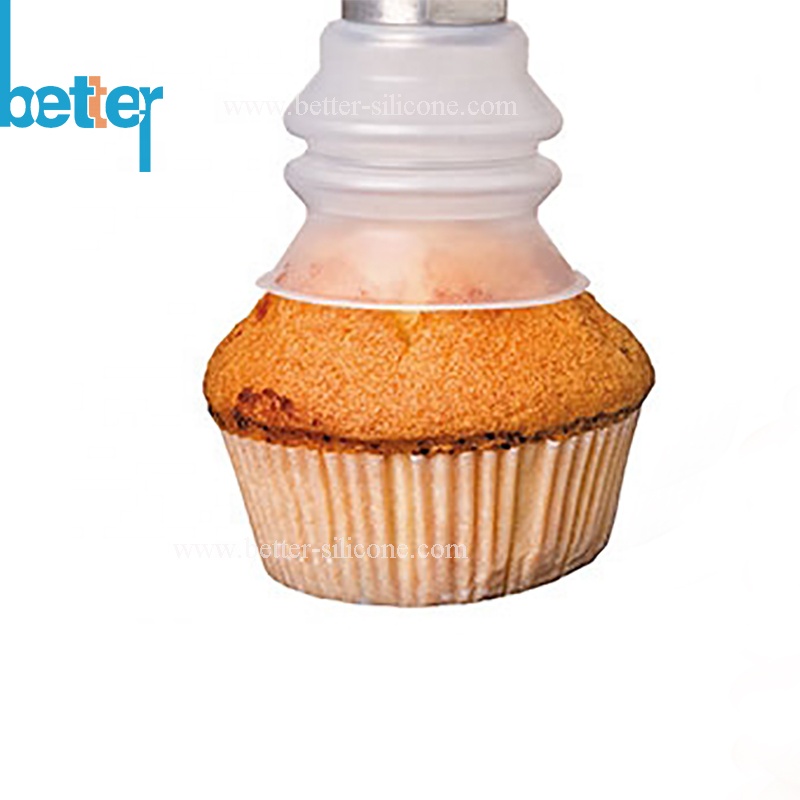

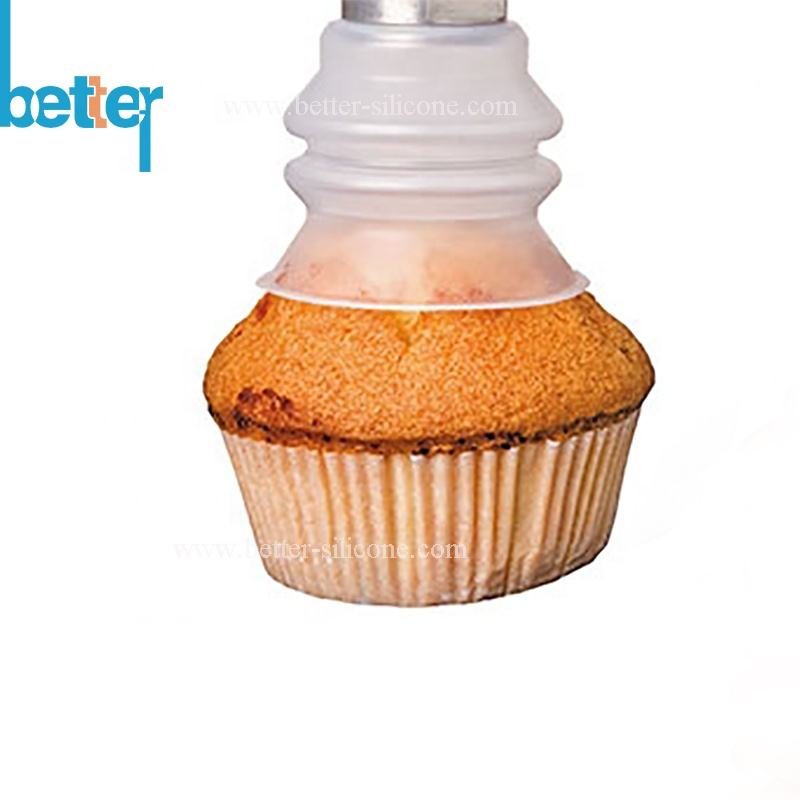

Food-Grade Suction Lifter

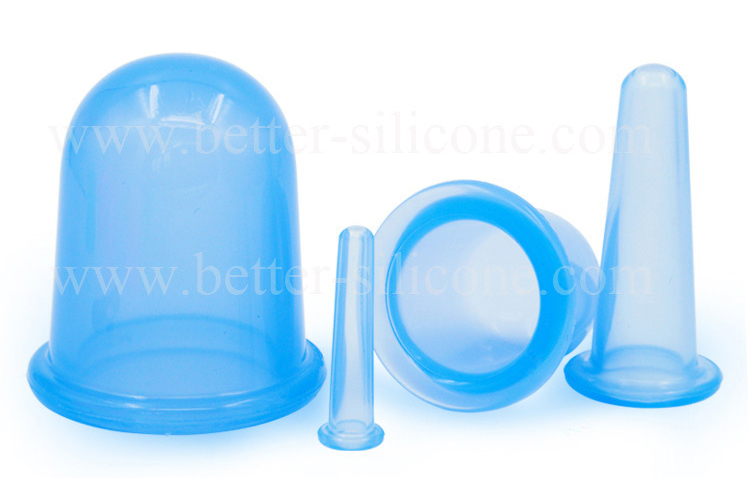

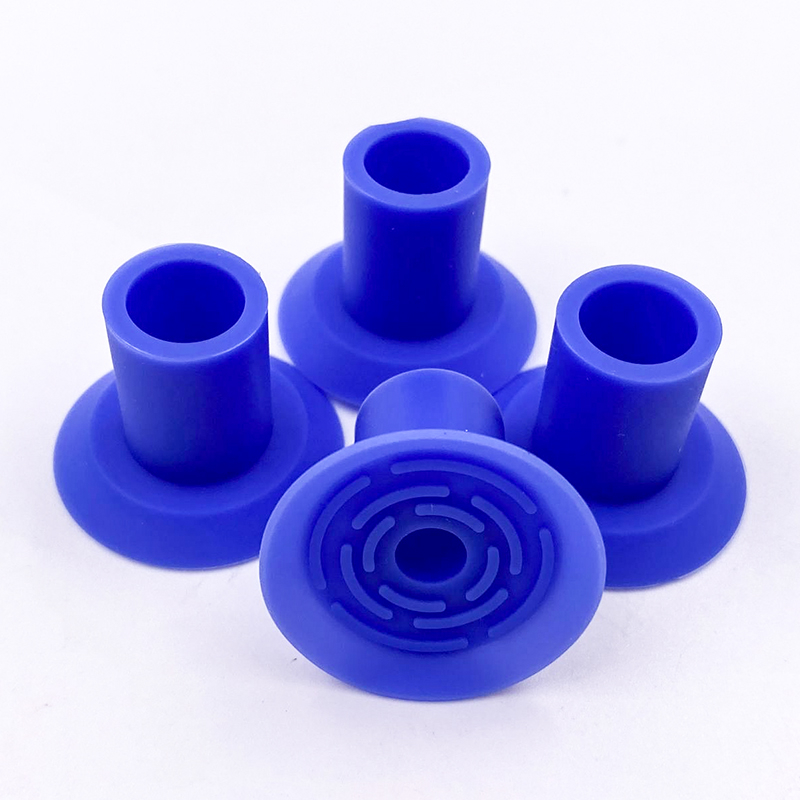

Therapy Vacuum Suction Massage Cups
