Silicone Elbow

Silicone Elbow also called as Silicone Couplers, Reducer Hoses, Silicone Elbow Connector, 90 Degree Elbow, Silicone Vacuum Hose, Tubing Connector, Medical Silicone Hose, Silicone Hose 45 Degree Elbow,which is widely used in trucks and buses, cranes and bulldozers, farm and forestry equipment, generator sets (gensets) and military vehicles, Silicone connectors are also used in mining, marine, aerospace applications and medical areas. Silicone Elbow Hose is usually made of silicone rubber by compression molding. And according to different working environment, we will suggest different properties material for production.
Availability:
Quantity:
  • Silicone Elbow
  • Better

Silicone Elbow


Silicone Elbow also called as Silicone Couplers, Reducer Hoses, Silicone Elbow Connector, 90 Degree Elbow, Silicone Vacuum Hose, Tubing Connector, Medical Silicone Hose, Silicone Hose 45 Degree Elbow, which is widely used in trucks and buses, cranes and bulldozers, farm and forestry equipment, generator sets and military vehicles, Silicone connectors are also used in minin marine, aerospace applications and medical areas. Silicone Elbow Hose is usually made of silicone rubber by compression molding. And according to different working environment, we will suggest different properties material for production.

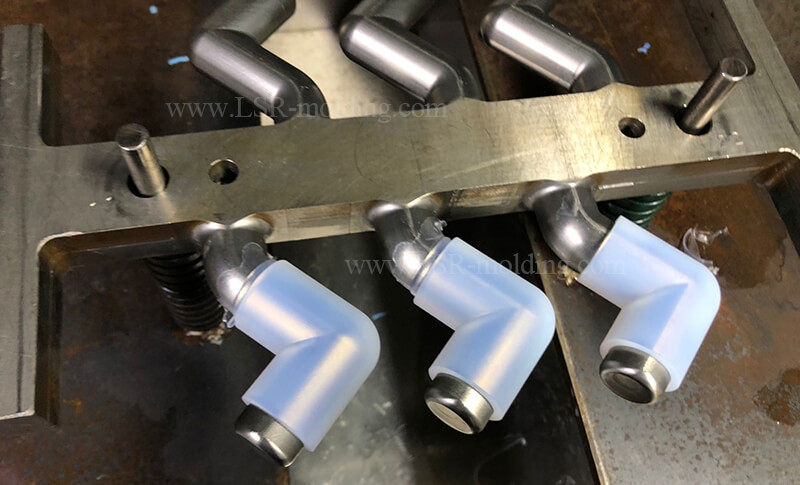

medical tubing connector

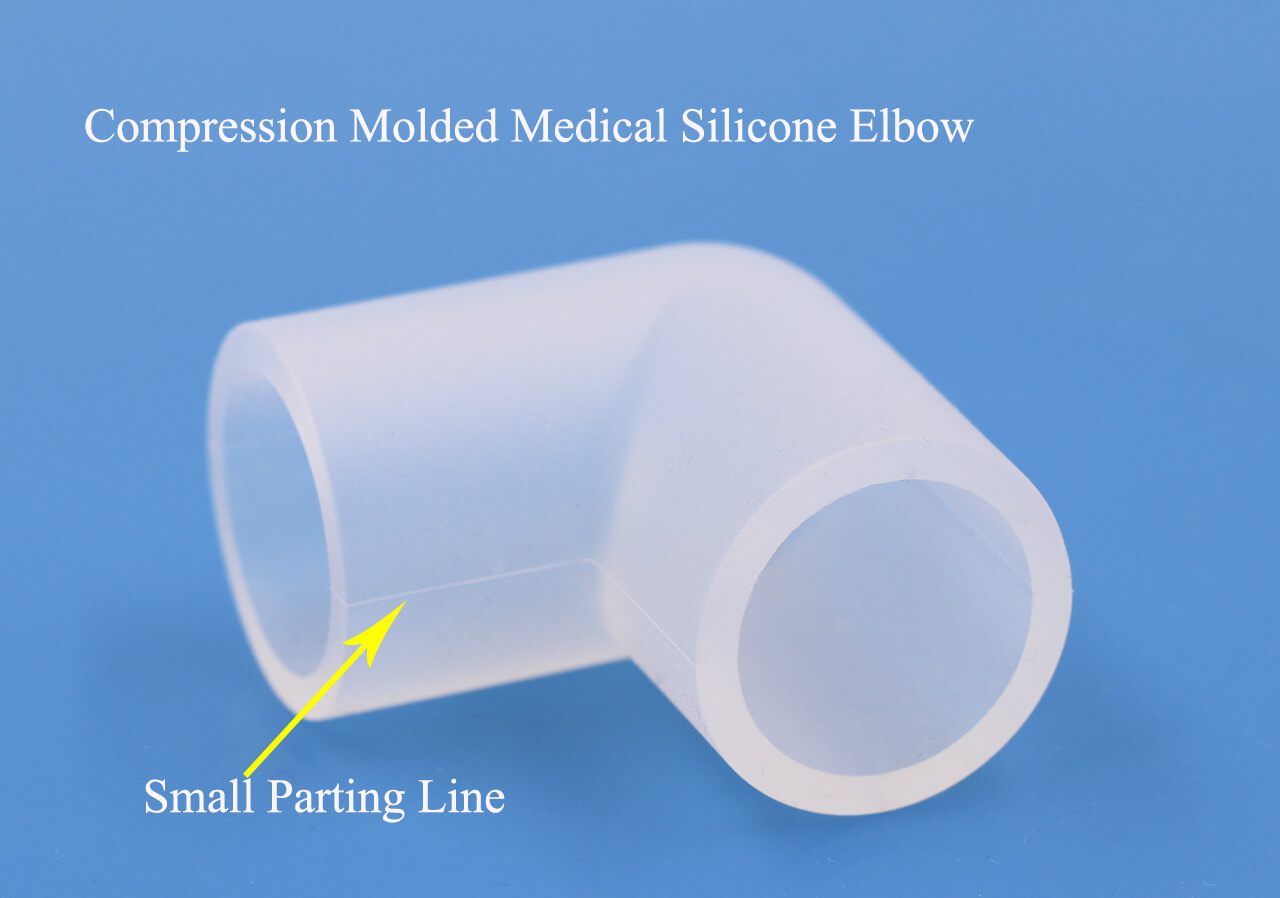

Silicone Elbow by compression molding can achieve mini parting line and tolerance can achieve to ±0.5mm, the mold tool cost is cheap than liquid injection molding.

Silicone hose connector by Liquid Injection Mold tolerance can achieve 0.05mm and with good and tiny parting line. And compared with compression molded silicone elbow, liquid silicone injection molded silicone elbow connector has higher safefy, can meet 100% medical grade, for medical areas use elbow/ tubing connectors, liquid injection molding is a better choice. While the mold cost of LSR injection mold is much higher than compression molding, if the material safety requirement is not very strict, compression molding is enough.


Silicone Elbow

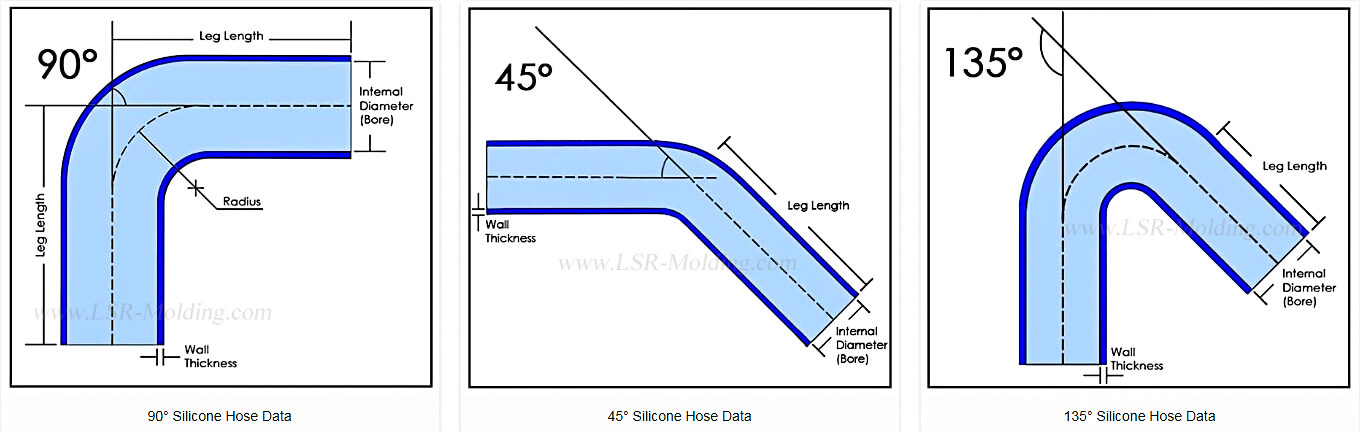

Silicone Elbows Connector types:

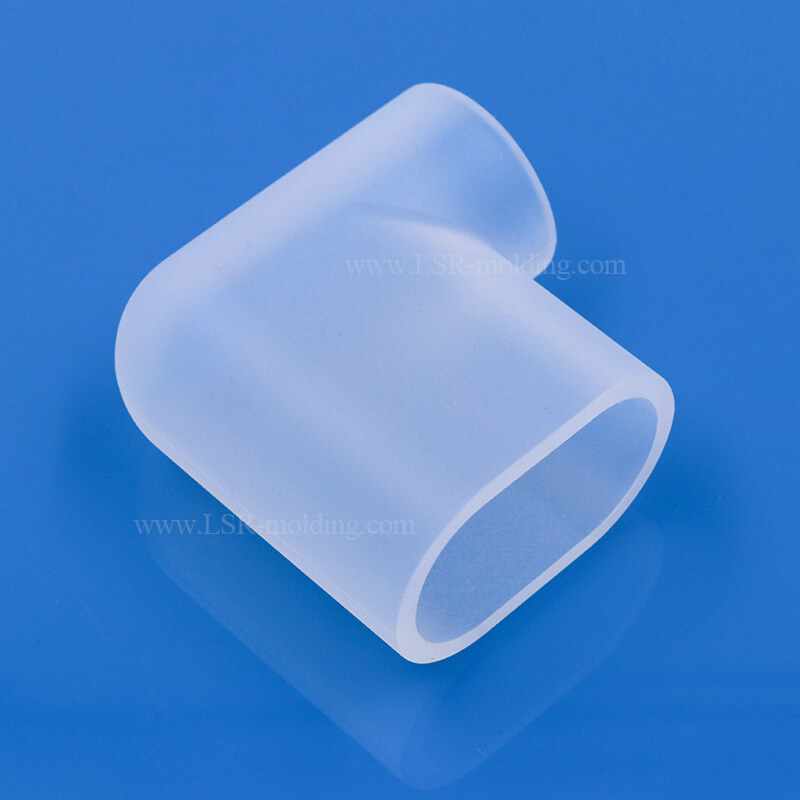

  • 45 Degree Silicone elbows, the angle of the bend is either 45°, which contains a molded bend (the elbow) and provide excellent flexibility.

  • 90 Degree Silicone reducers,  the angle of the bend is either 90°, which contains a molded bend (the elbow) and provide excellent flexibility.

    silicone vacuum hose silicone couplers

  • Silicone reducers or silicone reducer hoses provide for a transition between different pipe or tube sizes. Consequently, one end of the silicone coupler is larger than the other. Dimensional specifications include hose inside diameter, hose outside diameter, and length.

  • Straight silicone hoses come in various lengths and can be cut-to-size either in-house. Straight hoses support the use of metal clamps and may contain fabric reinforcements.
