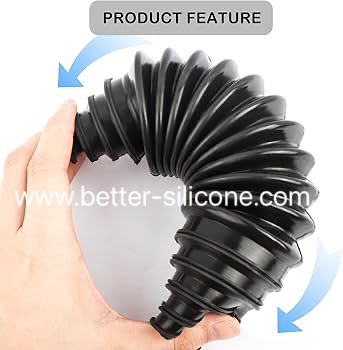

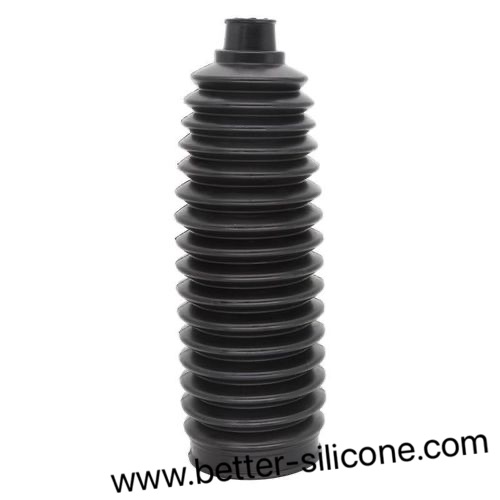

Inner Tie Rod Dust Boot

In the rubber industry, the Inner Tie Rod Dust Boot (also known as ball joint dust cover) is a critical rubber component in automotive steering systems. Its primary function is to protect the tie rod ball joint by preventing contaminants such as dust, mud, and moisture from entering while maintaining the sealing integrity of internal lubricants. This ensures smooth steering operation and enhances durability. Inner tie rod dust boots are mainly produced by rubber compression molding and rubber injection molding.

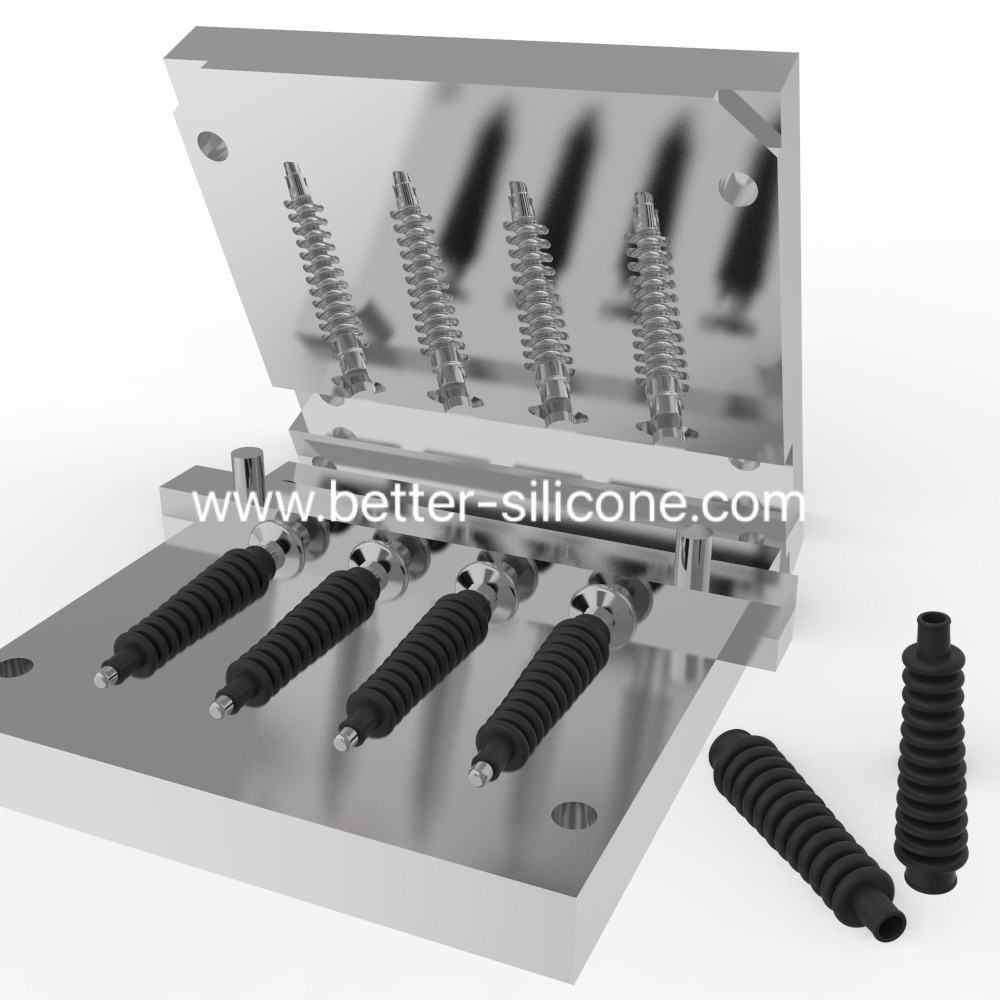

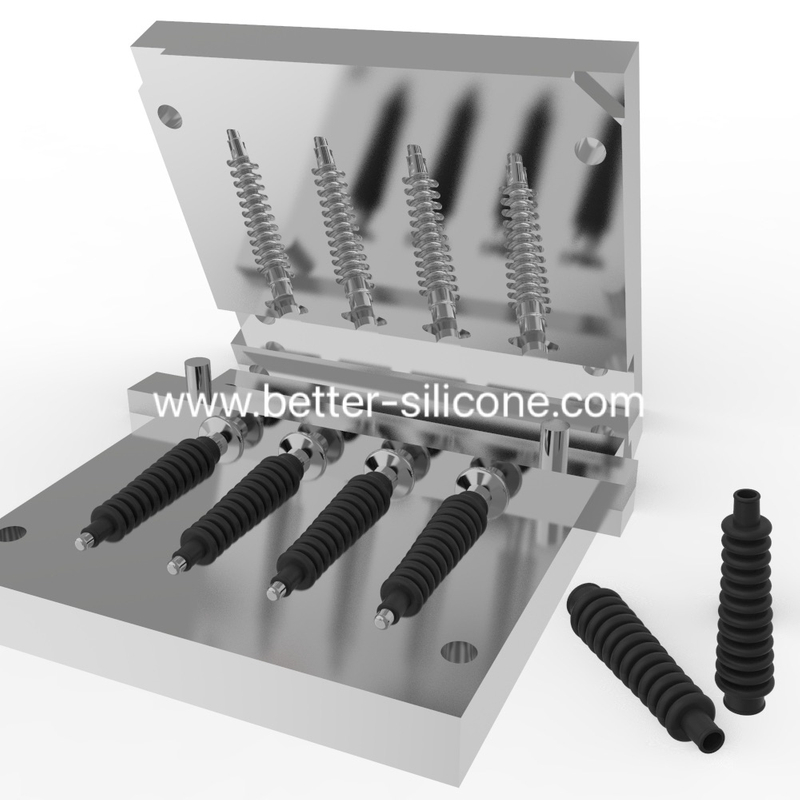

Inner Tie Rod Dust Boot Manufactured by Rubber Compression Molding

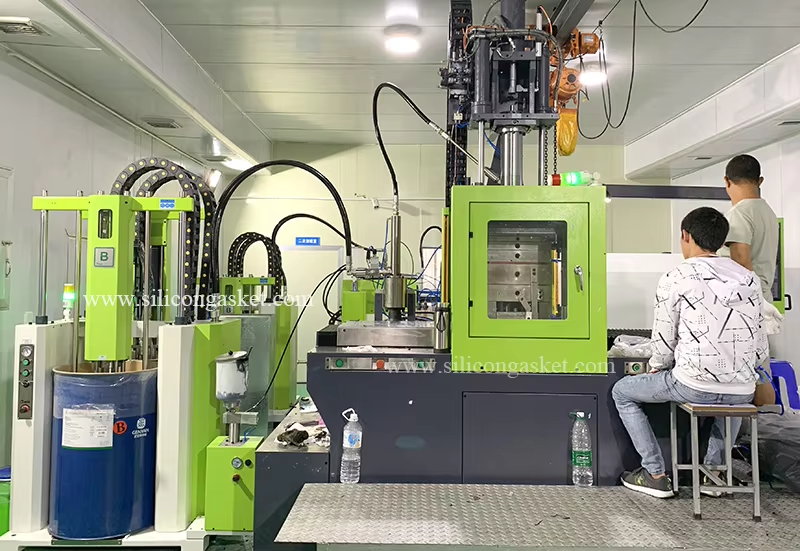

Liquid Silicone Inner Tie Rod Dust Boot Manufactured by LSR Injection Molding

Our Company's Competitive Advantages in Inner Tie Rod Dust Boot Manufacturing

As a professional manufacturer of inner tie rod dust boots, we differentiate ourselves through superior materials and precision engineering. Here are our key strengths:

1. High-Performance Material Expertise

   - Advanced Rubber Compounds: We use NBR, HNBR, TPU, and silicone rubber optimized for Extreme temperature                                                               resistance (-40°C to 200°C), Superior oil resistance and Long-term durability.

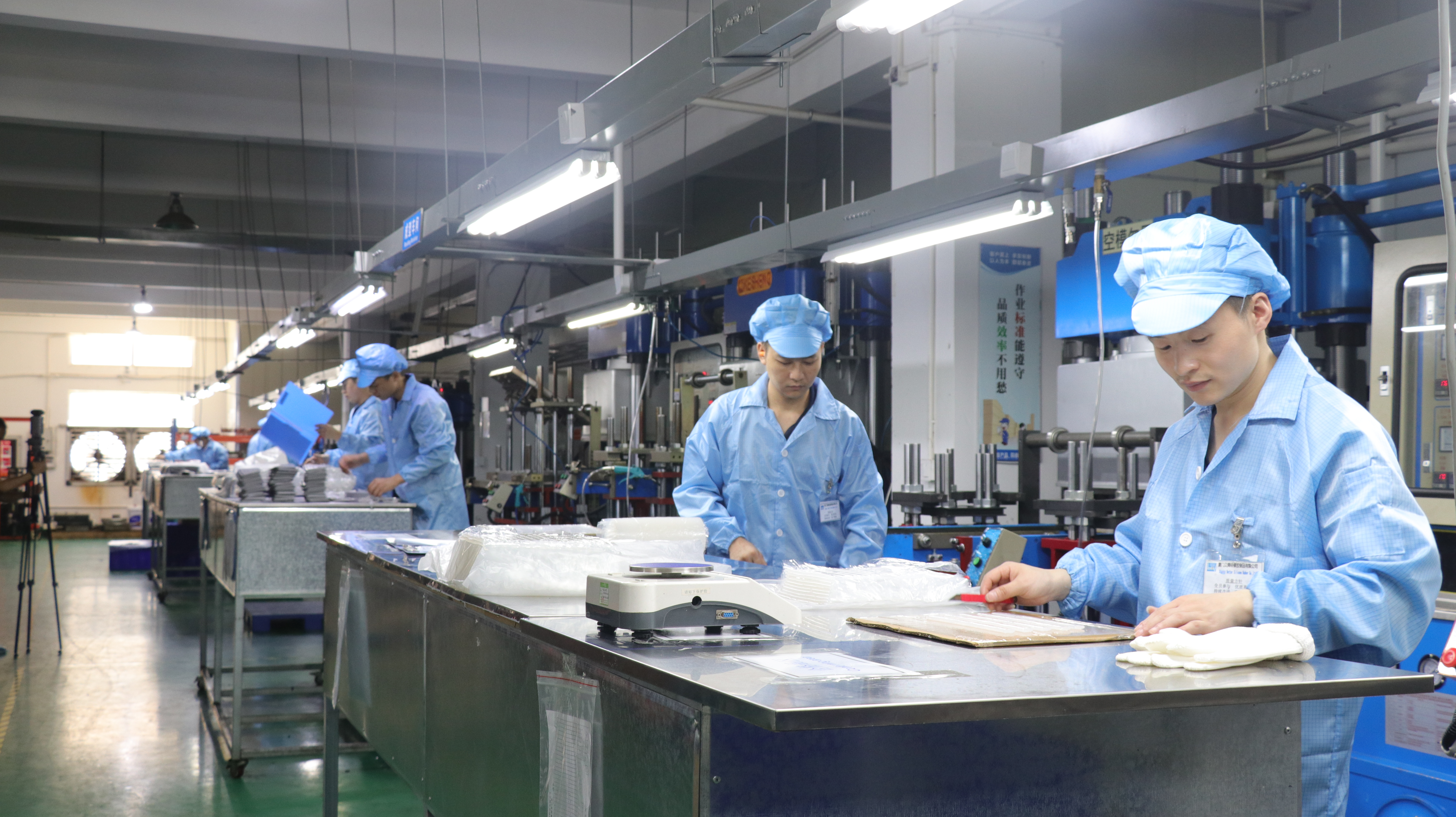

2. High-Precision Manufacturing & Quality Control

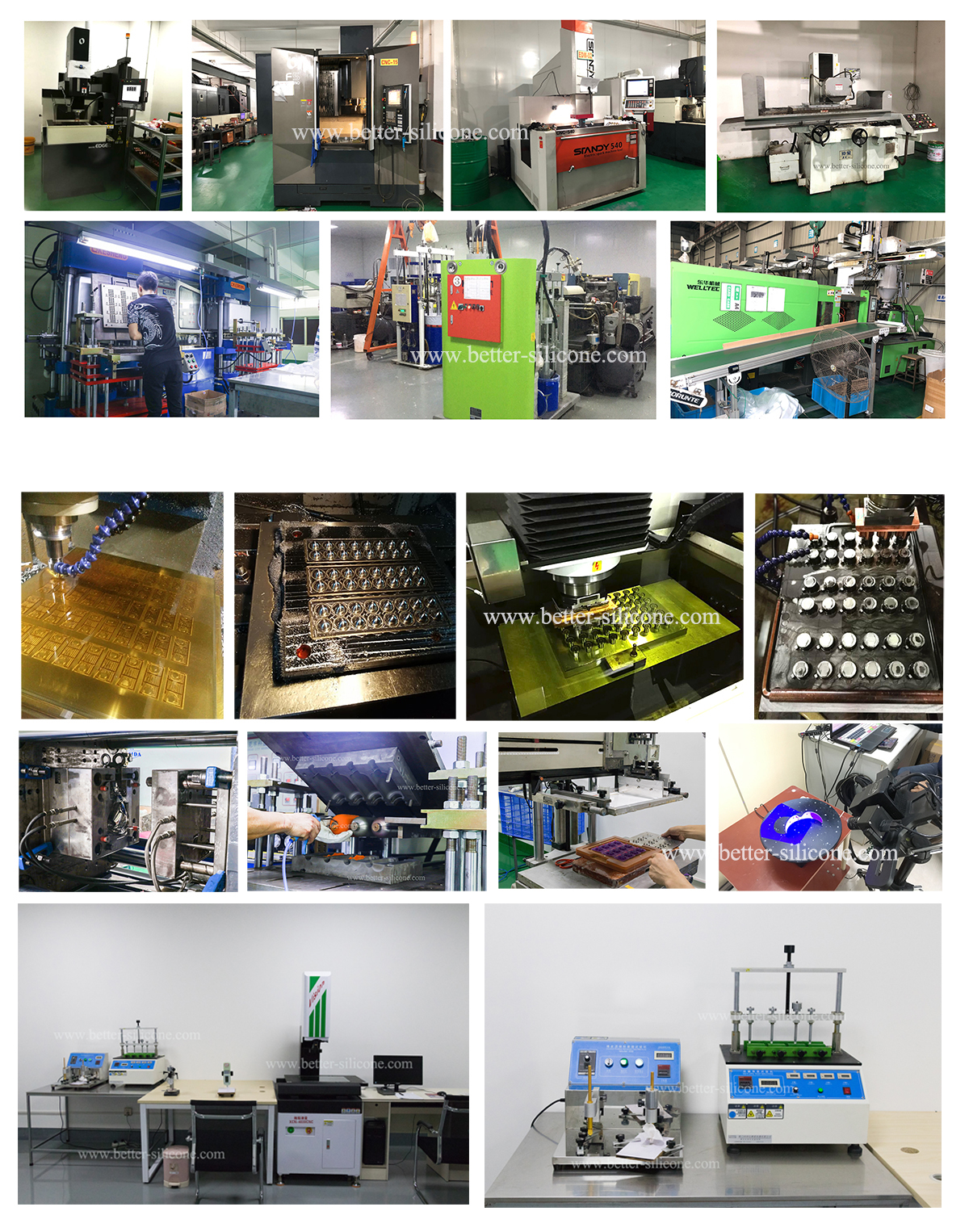

   - Automated Molding Processes: High-precision compression/injection molding ensures consistent wall thickness                                                                     and sealing performance.

  - 100% Leak Testing: Every dust boot undergoes air pressure and dust ingress tests to guarantee airtightness.

Inner Tie Rod Dust Boot Main Function and Purpose

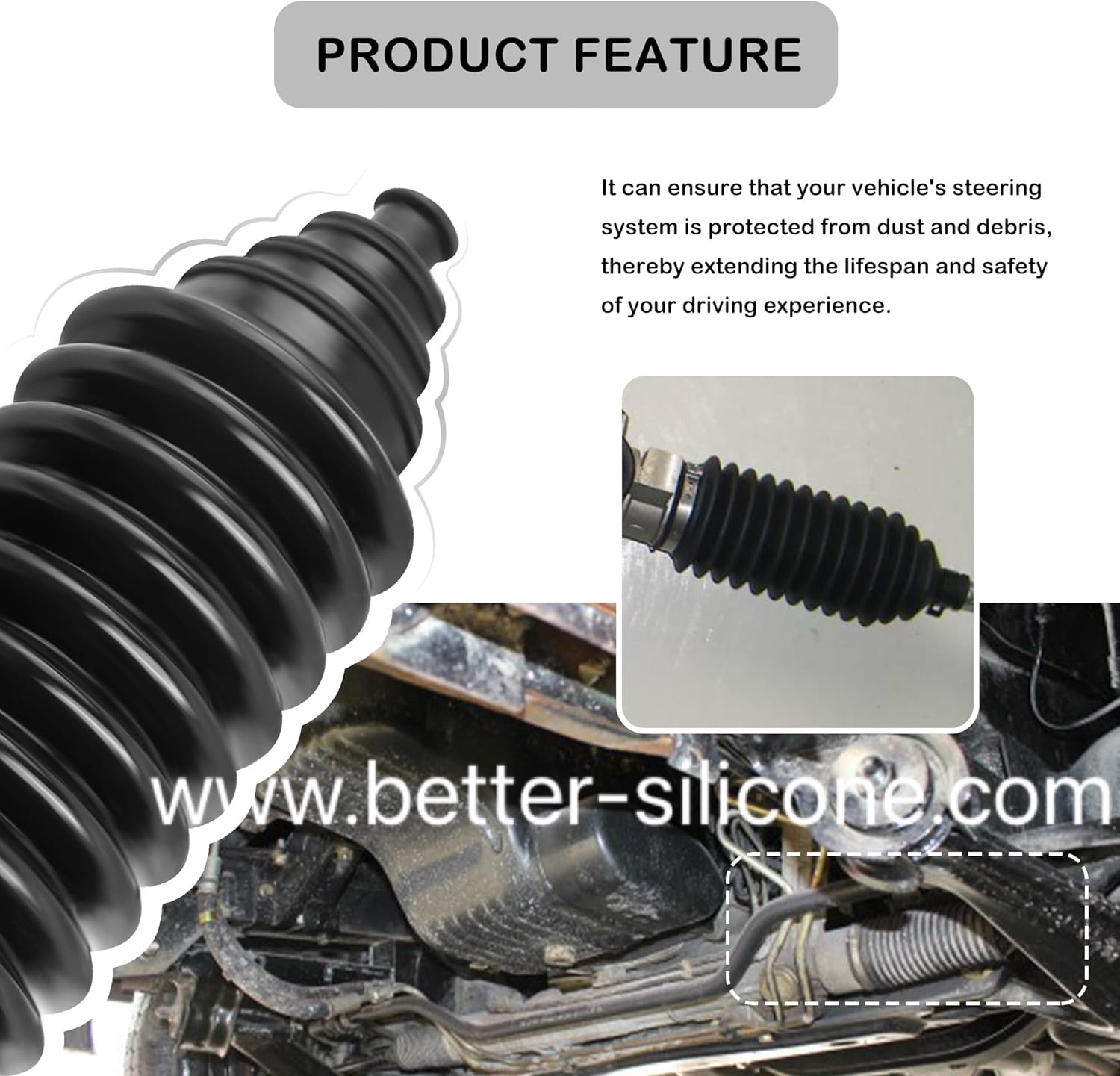

- Dust and Water Protection: Prevents contaminants like dirt, dust, and moisture from entering the tie rod ball joint, avoiding grease loss and component corrosion.

- Ball Joint Protection: Maintains internal lubrication, reduces metal-on-metal friction, and extends steering system lifespan.

- Sealing Performance: Ensures airtightness during dynamic movements (e.g., steering, bumps).

Inner Tie Rod Dust Boot Main Materials

The material selection for Tie Rod Dust Boots directly impacts their sealing performance, durability, and environmental adaptability. Better Silicone will help you to identify the most suitable and cost-effective material for your application.

NBR (Nitrile Rubber)

Advantages:  Excellent oil resistance (ideal for greased environments)

                    Good wear resistance and cost-effectiveness

                    Operating temperature range: -30°C to +100°C

Disadvantages: Poor ozone and weather resistance; prone to aging with prolonged exposure

Applications: Budget passenger vehicles, standard operating conditions

HNBR (Hydrogenated Nitrile Rubber)

Advantages: Higher temperature resistance than NBR (-40°C to +150°C)

                     Superior aging, ozone, and chemical resistance

                     High mechanical strength, longer lifespan

Disadvantages: Higher cost than NBR

Applications: Mid-to-high-end vehicles, harsh environments (e.g., near high-temperature engine compartments)

TPU (Thermoplastic Polyurethane)

Advantages:Outstanding abrasion and tear resistance

                    Excellent low-temperature performance (-50°C to +120°C)

                    Recyclable, aligning with eco-friendly trends

Disadvantages: May soften under prolonged high temperatures

                         Higher cost

Applications: High-performance vehicles, construction machinery

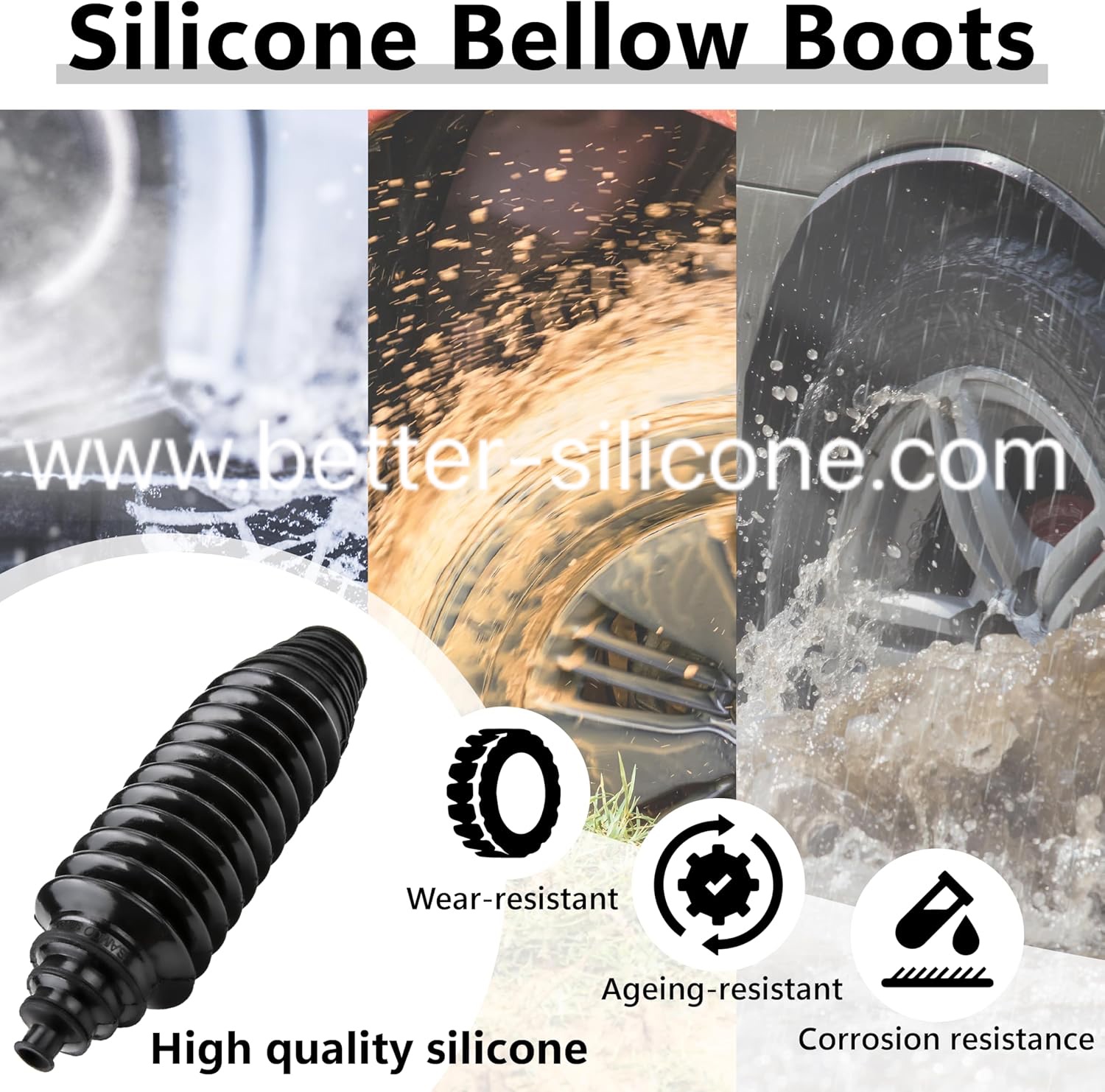

Silicone Rubber

Advantages:  Extremely wide temperature range (-60°C to +200°C)

                     Exceptional weather and UV resistance

                     Non-toxic, suitable for food-grade or medical applications (specialized scenarios)

Disadvantages: Lower mechanical strength, susceptible to punctures

                          Expensive

Applications: New energy vehicles (high-temperature battery areas), specialty vehicles

EPDM (Ethylene Propylene Diene Monomer)

Advantages:Excellent ozone, weather, and water resistance

                    Operating temperature: -50°C to +150°C

Disadvantages: Poor oil resistance; unsuitable for greased environments

Applications: Dust boots in non-lubricated areas (e.g., suspension components)

CR (Chloroprene Rubber)

Advantages: Balanced oil, weather, and flame resistance

                     Temperature range: -40°C to +120°C

Disadvantages: Gradually being replaced by HNBR/TPU

Applications: Traditional industrial machinery

Key Factors in Material Selection

Temperature Requirements: HNBR or silicone for high heat, TPU for extreme cold.

Media Exposure: Oil resistance ranking: NBR > HNBR > TPU > EPDM.

Cost Considerations: NBR offers the best value; silicone/TPU for premium needs.

Dynamic Fatigue Resistance: Corrugated designs require high elasticity (e.g., TPU)
